модель 2018 года
- Модель Stampede
- Код модели STAMPEDE BLACK (U2018STW1SUSP)

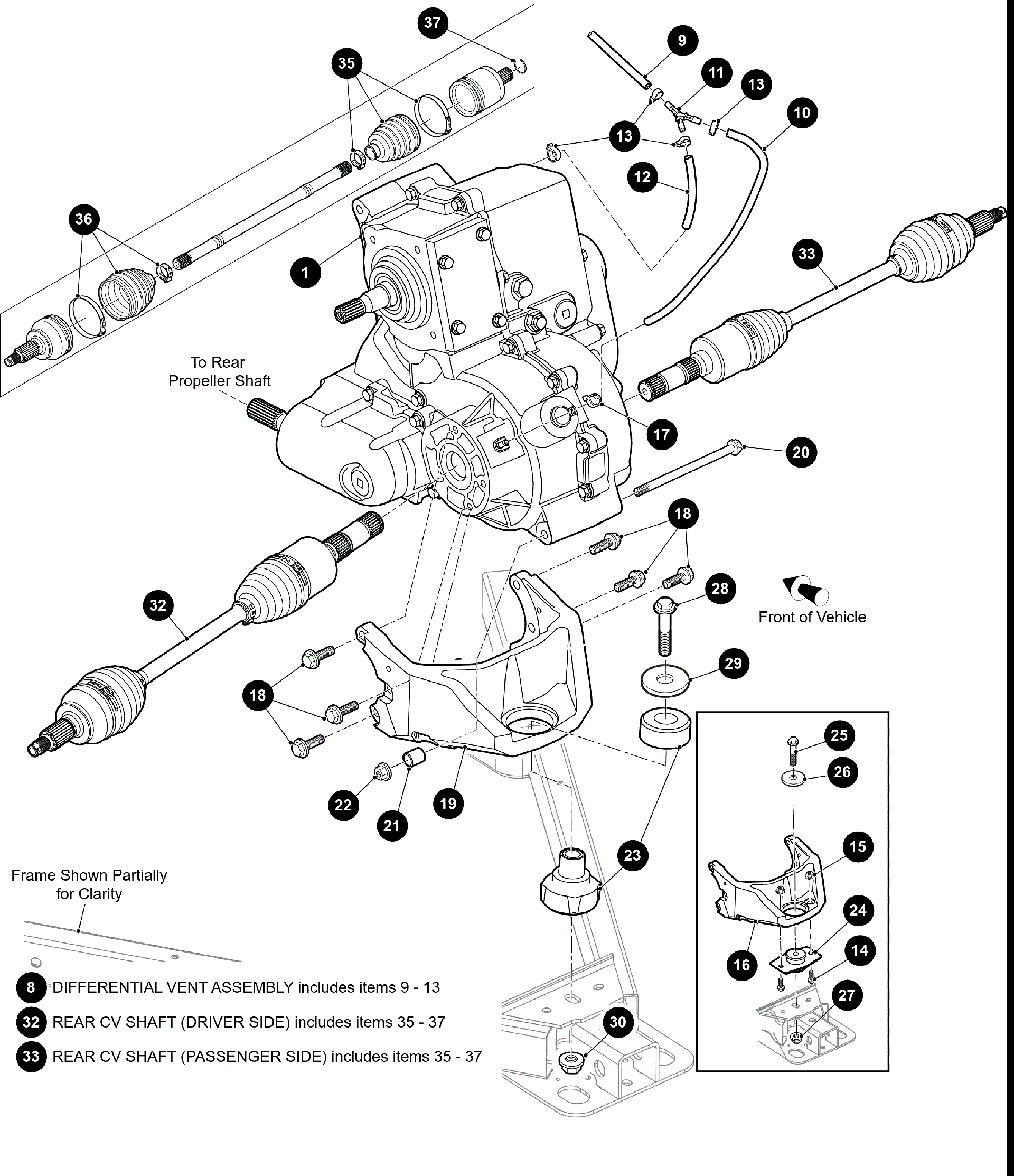

Схема задний привод GEARCASEAXLES [302403] для STAMPEDE BLACK (U2018STW1SUSP)
Схема
Детали
![задний привод GEARCASEAXLES [302403]](/upload/schemas/634583916be142.10404845.gif)
Номер
Наименование детали
Цена
1
DIFF,REAR,4WD,12.54,E LOCKER art. 633701G26
По запросу
7
CABLE TIE, FIR TREE art. 645340
По запросу
8
DIFF,VENT ASSY INCLUDES ITEMS 9 - 13 art. 643514
По запросу
9
VENT TUBE,6.35MM ID,TO AMBIENT art. 642175
По запросу
10
VENT TUBE, LOWER art. 642173
По запросу
11
ADAPTER,Y,VENT TUBE art. 642174
По запросу
12
VENT TUBE, UPPER art. 642172
По запросу
13
CLAMP - NYLON art. 17618G1
По запросу
14
BOLT,HXFL,M10 X 1.5 X 35,PC10.9 art. 648684
По запросу
15
NUT,FLHD,PLSLK,M10 X 1.5,PC8 art. 648753
По запросу
16
SVC-CASTING, AXLE FOR VEHICLES MANUFACTURED BEFORE MARCH 26, 2018 art. 649422
По запросу
17
CLAMP - NYLON art. 17618G1
По запросу
18
BOLT,HXFL,M10 X 1.5 X 35,PC10.9 art. 648684
По запросу
19
SVC-CASTING,AXLE FOR VEHICLES MANUFACTURED AFTER MARCH 26, 2018 art. 673987
По запросу
20
BOLT,HXFL,M10 X 1.5 X 150,PC10.9 art. 649129
По запросу
21
SPACER,SHOCK MTG art. 646314
По запросу
22
NUT,FLHD,PLSLK,M10 X 1.5,PC8 art. 648753
По запросу
23
ISOLATOR, POWERTRAIN FOR VEHICLES MANUFACTURED AFTER MARCH 26, 2018 art. 657521
По запросу
24
SVC-ISOLATOR, CENTER BONDED FOR VEHICLES MANUFACTURED BEFORE MARCH 26, 2018 art. 645396
По запросу
25
BOLT, HXFL M12-1.75 X 70--CLS 10.9 FOR VEHICLES MANUFACTURED BEFORE MARCH 26, 2018 art. 648681
По запросу
26
WASHER, 13.5 ID X 60.5 OD, 3.2 THK FOR VEHICLES MANUFACTURED BEFORE MARCH 26, 2018 art. 645622
По запросу
27
NUT,FLHD,PLSLK,M12 X 1.75,PC10 FOR VEHICLES MANUFACTURED BEFORE MARCH 26, 2018 art. 648751
По запросу
28
BOLT,HXFL,M12-1.25X75,CL10.9 FOR VEHICLES MANUFACTURED AFTER MARCH 26, 2018 art. 8413-275
По запросу
29
WASHER,13.5 ID X 45 OD,3.2 THK FOR VEHICLES MANUFACTURED AFTER MARCH 26, 2018 art. 672239
По запросу
30
Гайка Arctic Cat art. 8427-202
от 221 ₽
32
CV,REAR,27&29 TOOTH INCLUDES ITEMS 35 - 37 art. 651684
По запросу
33
CV,REAR,27 TOOTH INCLUDES ITEMS 35 - 37 art. 651683
По запросу
35
SVC-KIT,BOOT,DOJ art. 654352
По запросу
36
SVC-KIT,BOOT,CV art. 656390
По запросу
37
SVC-CIRCLIP,REAR DOJ art. 654353
По запросу
