модель 2017 года
- Модель Ranger XP 900
- Код модели RANGER 900 EPS POLAND (R17RTE87FU/F1/S87CU/C1/FU/F1)

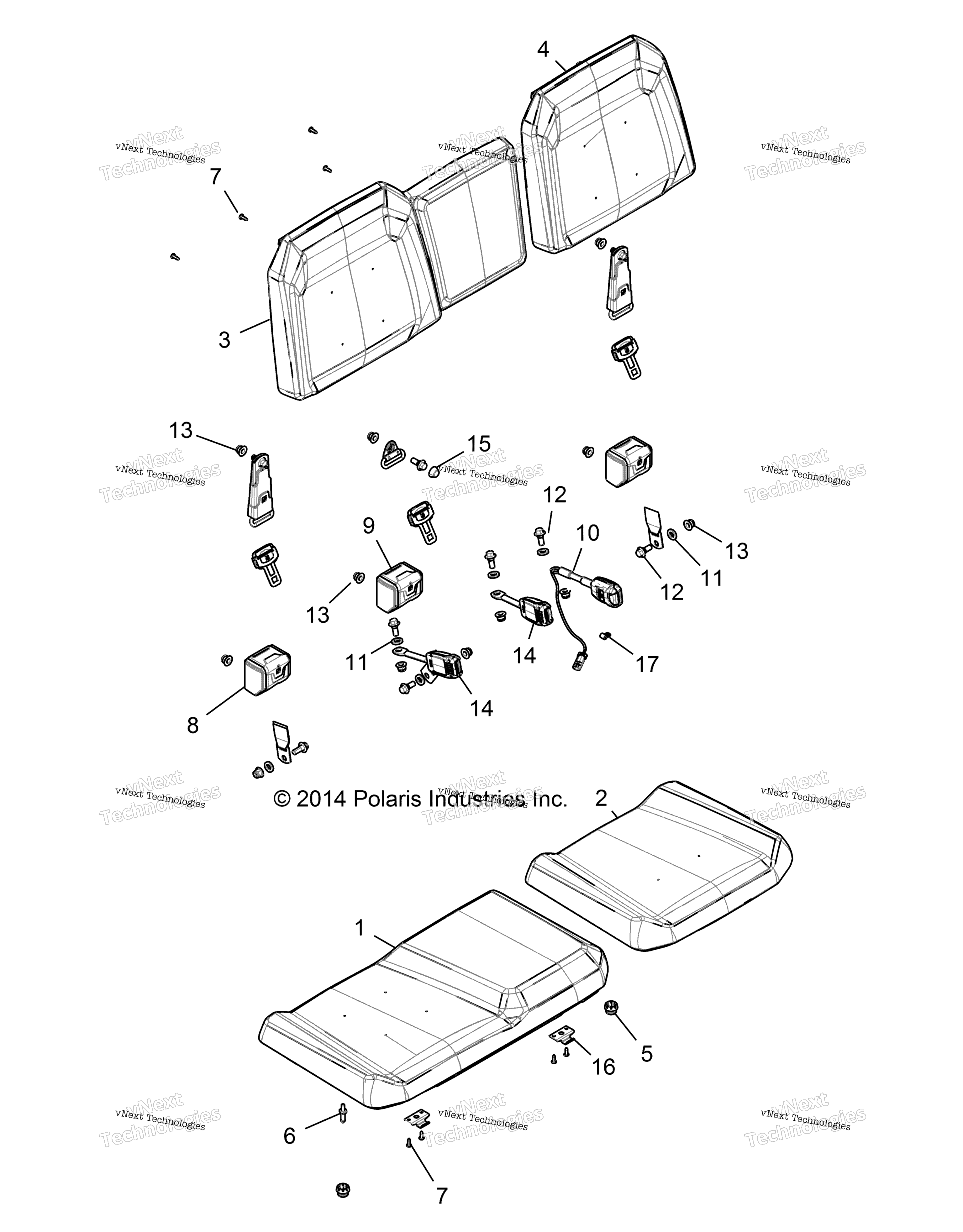

Схема body, Seat, 60 / 40 Full Back R17rte87fu / S87cu / C1 / Fu для RANGER 900 EPS POLAND (R17RTE87FU/F1/S87CU/C1/FU/F1)
Схема
Детали
Номер
Наименование детали
Цена
1
SEAT ASM BOTTOM 60 BLACK/DARK ( [INCL.16, QTY 4 OF 7][E87FU][S87CU][S87FU][FROM 4/10/2017] art. 2687909
По запросу
1
BOTTOM SEAT ASSEMBLY, GLOSS BLA [INCL.16, QTY 4 OF 7][S87C1][TO 4/18/2017] art. 2684965-070
По запросу
1
SEAT ASSEMBLY, BOTTOM, GLOSS BL [INCL.16, QTY 4 OF 7][S87C1][FROM 4/18/2017] art. 2687901-070
По запросу
1
SEAT ASSEMBLY, BOTTOM [INCL.16, QTY 4 OF 7][E87FU][S87CU][S87FU][TO 4/10/2017] art. 2686922
По запросу
2
SEAT ASSEMBLY, BOTTOM, 40 [INCL. 15, QTY 2 OF 7][E87FU][S87CU][S87FU][TO 4/10/2017] art. 2686923
По запросу
2
ASM-SEAT,BTM,40,BLK/DK.MARC [INCL. 15, QTY 2 OF 7][E87FU][S87CU][S87FU][FROM 4/10/2017] art. 2687912
По запросу
2
ASM-SEAT,BTM,40,BLK [INCL. 15, QTY 2 OF 7][S87C1][TO 4/24/2017] art. 2686034-070
По запросу
2
ASM-SEAT,BTM,40,BLK [INCL. 15, QTY 2 OF 7][S87C1][FROM 4/24/2017] art. 2687940-070
По запросу
3
ASM-SEAT,BACK,60,BLK/DK.MARC [E87FU][S87CU][S87FU][TO 4/10/2017] art. 2686920
По запросу
3
SEAT BACK ASSEMBLY, 60, BLACK/ [E87FU][S87CU][S87FU][FROM 4/10/2017] art. 2687903
По запросу
3
SEAT BACK ASSEMBLY, 60, GLOSS B [S87C1][TO 4/10/2017] art. 2684967-070
По запросу
3
ASM-SEAT,BACK,60,BLK [S87C1][FROM 4/10/2017] art. 2687919-070
По запросу
4
SEAT ASM BACK 40 BLACK/DARK (MA [E87FU][S87CU][S87FU][FROM 4/10/2017] art. 2687906
По запросу
4
ASM-SEAT,BACK,40,BLK [S87C1][FROM 12/12/2017] art. 2687921-070
По запросу
4
SEAT ASSEMBLY, BACK [S87C1][TO 12/12/2017] art. 2684968-070
По запросу
4
ASM-SEAT,BACK,40,BLK/DK.MARC [E87FU][S87CU][S87FU][TO 4/10/2017] art. 2686921
По запросу
5
GROMMET art. 5439179
По запросу
6
SEAT LATCH PIN art. 5910404
По запросу
7
TORX SCREW, #14 X 3/4 art. 7519045
По запросу
8
ASM-SEAT BELT,3PT TR art. 2636338
По запросу
9
ASM-SEAT BELT,3PT TR art. 2636338
По запросу
10
BUCKLE-SEATBELT,90,SWITCH,TR art. 2636437
По запросу
11
SEATBELT WASHER, RUBBER art. 5813829
По запросу
12
HEX FLANGE SCREW 12MM X 1.75MM art. 7519770
По запросу
13
HEX FLANGE NUT, 12 MM X 1.75 MM art. 7547441
По запросу
14
BUCKLE-SEATBELT,PASSENGER,TR art. 2636438
По запросу
15
CAP, HEAD BOLT art. -------
По запросу
16
SEAT HINGE BRACKET art. 5256836
По запросу
17
WIRE/TUMB CLAMP, .25 art. 7081246
По запросу
