модель 2024 года
- Модель Ranger Crew XD 1500
- Код модели RANGER XD 1500 NSTR CREW (R24X6L1RAH/AS/BH/BS)

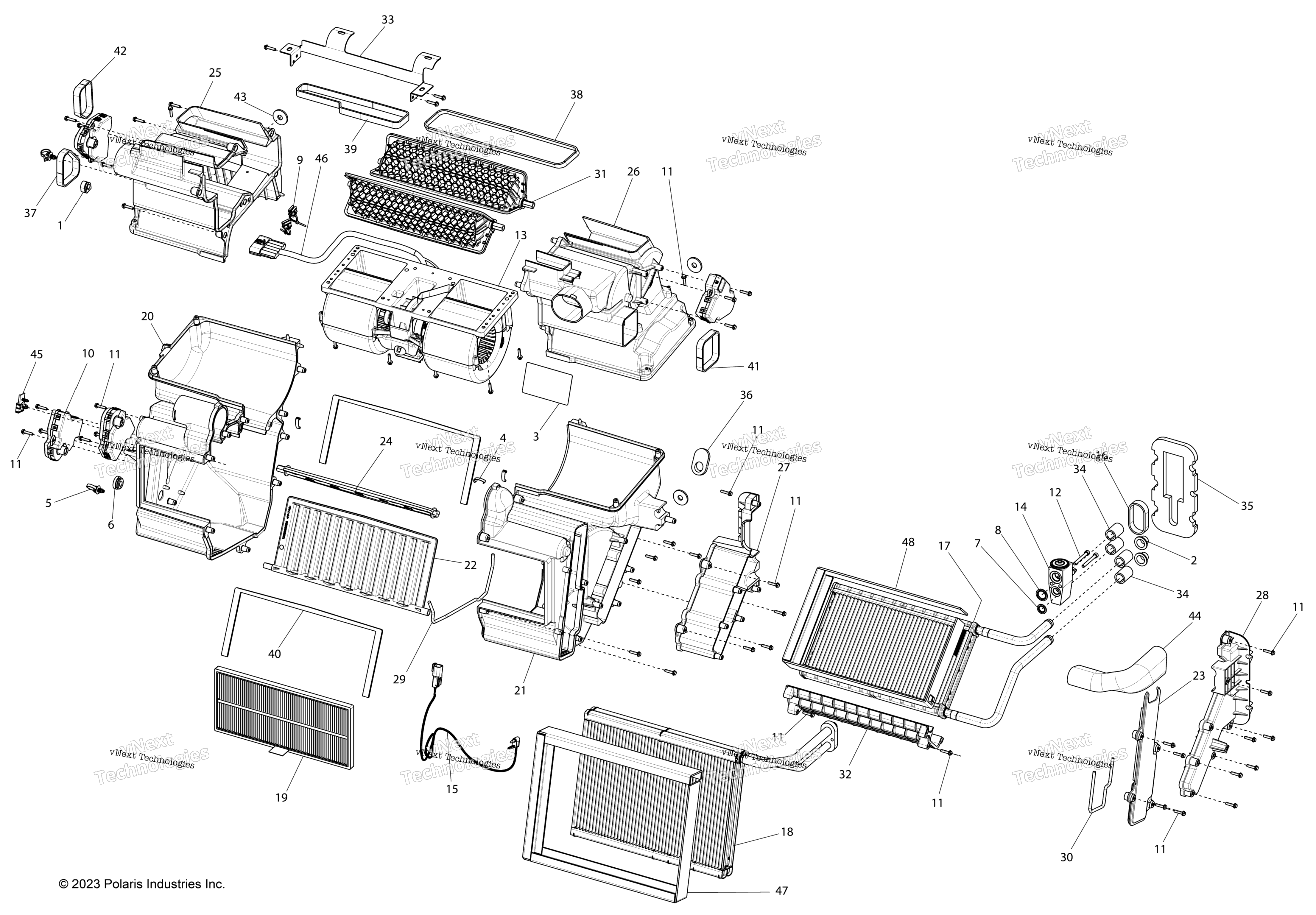

Схема кузов Hvac Main для RANGER XD 1500 NSTR CREW (R24X6L1RAH/AS/BH/BS)
Схема
Детали
Номер
Наименование детали
Цена
0
K-COIL-HEATER [INCLUDES 2,17, 34
& 48] art. 2211975
& 48] art. 2211975
По запросу
0
ASM-HVAC UNIT [INCLUDES ALL] art. 2638471
По запросу
0
K-FREEZE PROBE [INCLUDES 15] art. 2211986
По запросу
0
K-BLEND BOX [INCLUDES 4, 10, 11, 20-22, 24, 29, 32,
36, 40 & 43] art. 2211985
36, 40 & 43] art. 2211985
По запросу
0
K-MODE BOX [INCLUDES 4, 10, 25, 26, 31, 33, 37-39,
42 & 43] art. 2211984
42 & 43] art. 2211984
По запросу
0
K-COVER-HEATER [INCLUDES 11, 27 & 28] art. 2211983
По запросу
0
K-COVER-EVAPORATOR [INCLUDES 11, 23 & 30] art. 2211982
По запросу
0
FILTER, RECIRCULATION [INCLUDES 19] art. 2211981
По запросу
0
K-BLOWER, HEATER & A/C [INCLUDES 1, 9, 11, 13 & 46] art. 2211980
По запросу
0
K-ACTUATOR [INCLUDES 10 & 11] art. 2211979
По запросу
0
K-EXTERIOR GASKET [INCLUDES 35, 36 & 43] art. 2211978
По запросу
0
K-BLOCK,TXV [INCLUDES 7, 8, 12 & 14] art. 2211977
По запросу
0
K-COIL-EVAPORATOR [INCLUDES 5-8, 12, 14, 15, 18, 34, 44, 45
& 47] art. 2211976
& 47] art. 2211976
По запросу
1
GROMMET - WIRE
HARNESS art. -------
По запросу
2
CAP NO W-8 PLASTIC PROTECT art. -------
По запросу
3
DECAL, CAT SERIAL art. -------
По запросу
4
CLIP, SPRING art. -------
По запросу
5
TIE, CHRISTMAS TREE WIRE art. -------
По запросу
6
GROMMET, 3/4" SPLIT art. -------
По запросу
7
WASHER, 1/2" SLIM LINE art. -------
По запросу
8
WASHER, 5/8" SLIM LINE art. -------
По запросу
9
TIE, CABLE CLIP INST art. -------
По запросу
10
ACTUATOR, 12V 126 DEG CCW art. -------
По запросу
11
SCREW - #8-16X19.1MM TRI-LOBE art. -------
По запросу
12
SCREW - M5-0.8X45.0MM SHCS art. -------
По запросу
13
BLOWER ASSEMBLY - 12V HIGH PERF art. -------
По запросу
14
TXV, 2.0 TON SLSW PARALLEL art. -------
По запросу
15
SENSOR, EVAPORATOR TEMP art. -------
По запросу
16
GASKET, BULK STRIP - MANIFOLD PERIMETER art. -------
По запросу
17
HEATER COIL, TUBE AND FIN - ALUMINUM art. -------
По запросу
18
EVAPORATOR COIL, TUBE AND FIN - ALUMINUM art. -------
По запросу
19
FILTER - RECIRC/FRESH AIR art. -------
По запросу
20
PLASTIC, INJECTION MOLDED - CASE, DRIVERS SIDE BLEND art. -------
По запросу
21
PLASTIC, INJECTION MOLDED - CASE,
PASSENGER SIDE BLEND art. -------
По запросу
22
PLASTIC, INJECTION MOLDED - DOOR, BLEND (FLAG) art. -------
По запросу
23
PLASTIC, INJECTION MOLDED - COVER,
EVAPORATOR art. -------
По запросу
24
PLASTIC, INJECTION MOLDED - DOOR, FRESH AIR art. -------
По запросу
25
PLASTIC, INJECTION MOLDED - CASE, DRIVERS SIDE MODE art. -------
По запросу
26
PLASTIC, INJECTION MOLDED - CASE,
PASSENGER SIDE MODE art. -------
По запросу
27
PLASTIC, INJECTION MOLDED - COVER, INNER TUBE art. -------
По запросу
28
PLASTIC, INJECTION MOLDED - COVER, TUBE art. -------
По запросу
29
RUBBER - 5MM DIA CORD-STOCK art. -------
По запросу
30
RUBBER - 5MM DIA CORD-STOCK art. -------
По запросу
31
PLASTIC, INJECTION MOLDED - BARREL DOOR art. -------
По запросу
32
PLASTIC, INJECTION MOLDED - BRIDGE,
HEATER SUPPORT art. -------
По запросу
33
SHEET METAL COMPONENT - MOUNTING BRACKET, UNIT art. -------
По запросу
34
GASKET, DIE CUT - TUBE INSULATION art. -------
По запросу
35
GASKET, DIE CUT - TXV CLOSEOUT art. -------
По запросу
36
GASKET, DIE CUT - DRAIN TUBE art. -------
По запросу
37
GASKET, BULK STRIP - FLOOR, DRIVER SIDE art. -------
По запросу
38
GASKET, BULK STRIP - DEFROST art. -------
По запросу
39
GASKET, BULK STRIP - PANEL art. -------
По запросу
40
GASKET, DIE CUT - BLEND FLOOR art. -------
По запросу
41
GASKET, BULK STRIP - FLOOR, PASSENGER
SIDE art. -------
По запросу
42
GASKET, BULK STRIP - REAR DUCT art. -------
По запросу
43
GASKET, DIE CUT - MOUNTING STUD art. -------
По запросу
44
GASKET, DIE CUT - EVAPORATOR, TUBE
INSULATION art. -------
По запросу
45
CLIP - ATTACHMENT, RECEPTACLES FIR TREE
STUD MOUNT DT AND DTM SERIES art. -------
По запросу
46
WIRE ASSEMBLY - BLOWER HARNESS art. -------
По запросу
47
GASKET, DIE CUT - EVAPORATOR art. -------
По запросу
48
GASKET, DIE CUT - HEATER art. -------
По запросу
