модель 2017 года
- Модель Wolverine R-spec
- Код модели WOLVERINE R-SPEC EPS (YXE70WPAHW)

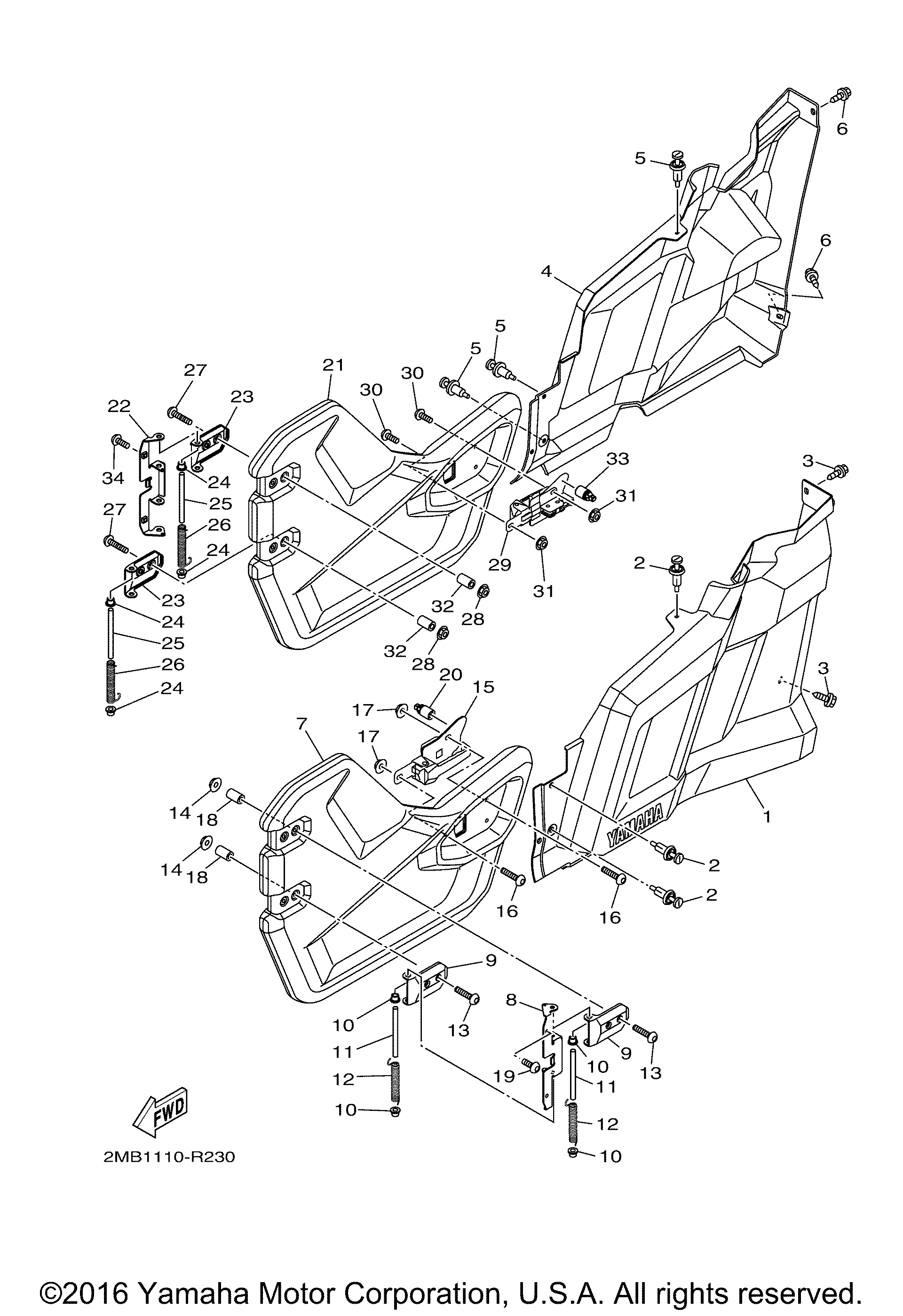

Схема боковой крышки для WOLVERINE R-SPEC EPS (YXE70WPAHW)
Схема
Детали
Номер
Наименование детали
Цена
1
COVER, SIDE 2 art. 2MB-F1721-00-00
По запросу
2
RIVET,SPEC’L SHAPE(replaces 90269-07803-00) art. 90269-07805-00
По запросу
3
BOLT, WITH WASHER art. 90119-06226-00
По запросу
4
Пластик боковой правый Yamaha art. 2MB-F1731-00-00
от 10 553 ₽
5
RIVET,SPEC’L SHAPE(replaces 90269-07803-00) art. 90269-07805-00
По запросу
6
BOLT, WITH WASHER art. 90119-06226-00
По запросу
7
PNL., DOOR FR. LH.(replaces 1XD-K8557-10-00) art. 1XD-K8557-11-00
По запросу
8
HINGE 2This item has been discontinued and may not be available. Contact us for more information. art. 1XD-F197K-00-00
По запросу
9
HINGEThis item has been discontinued and may not be available. Contact us for more information. art. 1XD-F1797-00-00
По запросу
10
BUSH, RUBBER 1This item has been discontinued and may not be available. Contact us for more information. art. 1XD-K7515-00-00
По запросу
11
PIN 1This item has been discontinued and may not be available. Contact us for more information. art. 1XD-F146A-00-00
По запросу
12
SPRG., HINGEThis item has been discontinued and may not be available. Contact us for more information. art. 1XD-F463G-00-00
По запросу
13
BOLT art. 90109-06897-00
По запросу
14
NUT-U(replaces 95602-06200-00) art. 95604-06200-00
По запросу
15
Ручка двери левая Yamaha Viking 16+ art. 2MB-K7171-00-00
По запросу
16
BOLT,HEX. SOCKET BUT art. 90111-06086-00
По запросу
17
NUT-U(replaces 95602-06200-00) art. 95604-06200-00
По запросу
18
COLLAR art. 90387-06304-00
По запросу
19
BOLT 2 art. 5B4-F1722-00-00
По запросу
20
PAD art. 2MB-F8378-00-00
По запросу
21
PNL., DOOR FR. LH.(replaces 1XD-K8557-10-00) art. 1XD-K8557-11-00
По запросу
22
HINGE 2This item has been discontinued and may not be available. Contact us for more information. art. 1XD-F197K-00-00
По запросу
23
HINGEThis item has been discontinued and may not be available. Contact us for more information. art. 1XD-F1797-00-00
По запросу
24
BUSH, RUBBER 1This item has been discontinued and may not be available. Contact us for more information. art. 1XD-K7515-00-00
По запросу
25
PIN 1This item has been discontinued and may not be available. Contact us for more information. art. 1XD-F146A-00-00
По запросу
26
SPRG., HINGEThis item has been discontinued and may not be available. Contact us for more information. art. 1XD-F463G-00-00
По запросу
27
BOLT art. 90109-06897-00
По запросу
28
NUT-U(replaces 95602-06200-00) art. 95604-06200-00
По запросу
29
BODY, LATCH 2 art. 2MB-K7172-00-00
По запросу
30
BOLT,HEX. SOCKET BUT art. 90111-06086-00
По запросу
31
NUT-U(replaces 95602-06200-00) art. 95604-06200-00
По запросу
32
COLLAR art. 90387-06304-00
По запросу
33
PAD art. 2MB-F8378-00-00
По запросу
34
BOLT 2 art. 5B4-F1722-00-00
По запросу
