модель 2007 года
- Модель GSX-R600
- Код модели GSX-R600

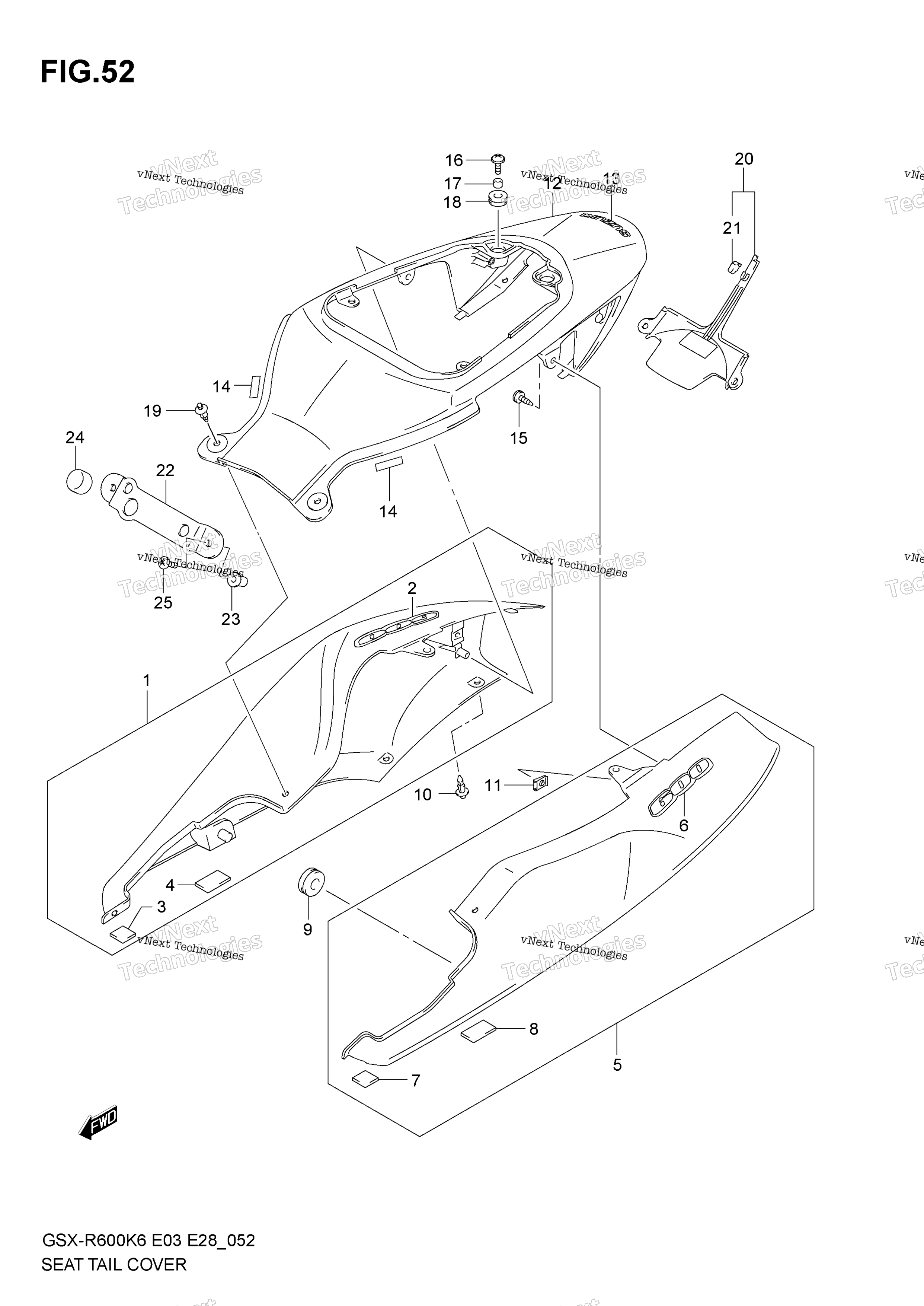

Схема сиденье Tail крышки для GSX-R600
Схема
Детали
Номер
Наименование детали
Цена
1
COVER, SEAT TAIL, R (GRAY) MODEL K6 FOR CAD art. 45501-01H01-YHG
По запросу
1
COVER, SEAT TAIL, R (BLACK) MODEL K6/K7 FOR CRU art. 45501-01H01-YKV
По запросу
1
COVER, SEAT TAIL, R (BLACK) MODEL K6 FOR BZG MODEL K7 FOR DYH; Includes Item(s) 2 - 4 art. 45501-01H01-019
По запросу
1
COVER, SEAT TAIL, R (WHITE) MODEL K6 FOR CWH,CWJ MODEL K7 FOR CWH,DYJ art. 45501-01H01-YBD
По запросу
2
EMBLEM, 600, R FOR 019 art. 68161-01H00-CTW
По запросу
2
EMBLEM, 600, R FOR YBD art. 68161-01H00-LV8
По запросу
2
EMBLEM, 600, R FOR YHG,YKV art. 68161-01H01-CVZ
По запросу
3
CUSHION, SEAT TAIL COVER RR art. 45516-01H00-000
По запросу
4
CUSHION, SEAT TAIL COVER FR art. 45517-01H00-000
По запросу
5
COVER, SEAT TAIL, L (WHITE) MODEL K6 FOR CWH,CWJ MODEL K7 FOR CWH,DYJ art. 45502-01H01-YBD
По запросу
5
COVER, SEAT TAIL, L (BLACK) MODEL K6 FOR BZG MODEL K7 FOR DYH; Includes Item(s) 6 - 8 art. 45502-01H00-019
По запросу
5
COVER, SEAT TAIL, L (BLACK) MODEL K6/K7 FOR CRU art. 45502-01H01-YKV
По запросу
5
COVER, SEAT TAIL, L (GRAY) MODEL K6 FOR CAD art. 45512-01H00-000
По запросу
6
EMBLEM, 600, L FOR 019 art. 68171-01H01-CTW
По запросу
6
EMBLEM, 600, L FOR YHG,YKV art. 68171-01H01-CVZ
По запросу
6
EMBLEM, 600, L FOR YBD art. 68171-01H00-LV8
По запросу
7
CUSHION, SEAT TAIL COVER RR art. 45516-01H00-000
По запросу
8
CUSHION, SEAT TAIL COVER FR art. 45517-01H00-000
По запросу
9
Втулка Suzuki art. 09320-08028-000
По запросу
10
Клипса Suzuki art. 09409-06314-5PK
от 326 ₽
11
NUT, SEAT TAIL COVER CTR art. 09148-05038-000
По запросу
12
COVER, SEAT TAIL CTR (BLACK) MODEL K6 FOR CAD,CRU MODEL K7 FOR CRU art. 45503-01H02-019
По запросу
12
COVER, SEAT TAIL CTR (RED) MODEL K6 FOR BZG MODEL K7 FOR DYJ; Includes Item(s) 13 - 14 art. 45503-01H02-YHH
По запросу
12
COVER, SEAT TAIL CTR (SILVER) MODEL K6 FOR CWJ art. 45503-01H01-YD8
По запросу
12
COVER, SEAT TAIL CTR (BLUE) MODEL K6 FOR CWH MODEL K7 FOR CWH,DYH art. 45503-01H02-YKY
По запросу
13
EMBLEM, SUZUKI MODEL K7 FOR DYJ art. 68281-01H01-019
По запросу
13
EMBLEM, SUZUKI MODEL K7 FOR CRU art. 68281-01H01-YU8
По запросу
13
EMBLEM, SUZUKI MODEL K7 FOR CWH,DYH art. 68281-01H01-YD8
По запросу
13
Наклейка "SUZUKI" art. 68280-04F00-YU8
По запросу
13
EMBLEM, SUZUKI MODEL K6 FOR YD8,YHH art. 68280-04F01-019
По запросу
13
EMBLEM, SUZUKI MODEL K6 FOR YKY art. 68280-04F01-YD8
По запросу
14
TAPE, SEAT TAIL COVER CTR art. 94443-06G00-000
По запросу
15
Винт Suzuki art. 03241-1516A-000
от 221 ₽
16
SCREW, SEAT TAIL COVER art. 09116-06115-000
По запросу
17
Втулка Suzuki art. 09180-06283-000
По запросу
18
CUSHION, SEAT TAIL COVER RR art. 09320-10059-000
По запросу
19
Клипса Suzuki art. 09409-06314-5PK
от 326 ₽
20
COVER, SEAT TAIL REAR (BLUE) MODEL K6 FOR CWH MODEL K7 FOR CWH,DYH art. 45514-01H00-000
По запросу
20
COVER, SEAT TAIL REAR (SILVER) MODEL K6 FOR CWJ art. 45504-01H00-YD8
По запросу
20
COVER, SEAT TAIL REAR (RED) MODEL K6 FOR BZG MODEL K7 FOR DYJ; Includes Item(s) 21 art. 45504-01H00-YHH
По запросу
21
CUSHION, SEAT TAIL COVER art. 45515-01H00-000
По запросу
22
BRACKET, SEAT TAIL COVER art. 45250-01H00-000
По запросу
23
Гайка Suzuki 09159-05019 art. 09159-05019-000
По запросу
24
Втулка Suzuki art. 09321-10011-000
По запросу
25
SCREW, SEAT TAIL COVER BRKT art. 02142-0520A-000
По запросу
