модель 2008 года
- Модель 600 Switchback
- Код модели 600/700 SWITCHBACK/DRAGON SWITCHBACK ALL OPTIONS (S08PR6/PS6/PR7/PS7)

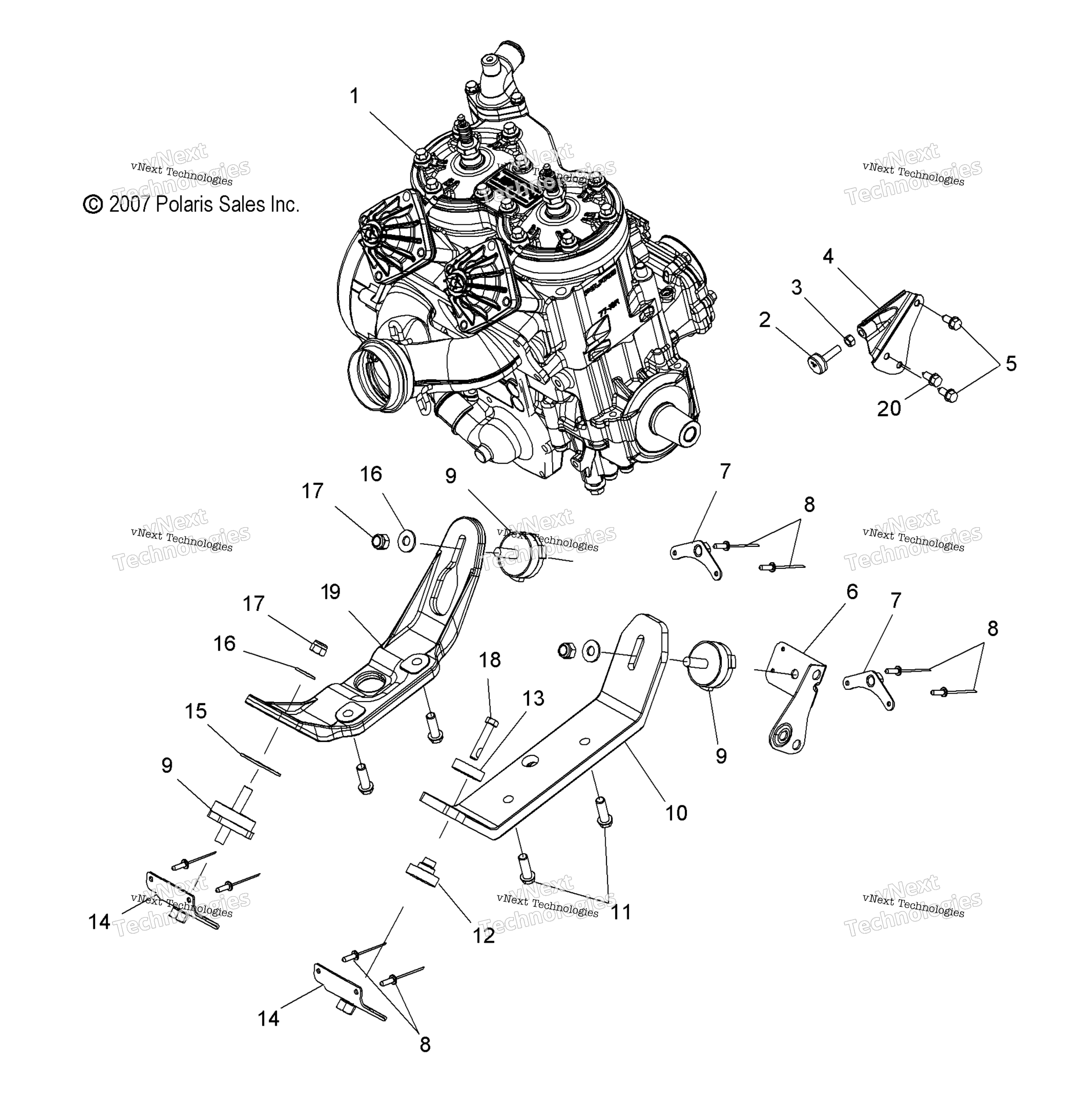

Схема двигателя, крепления для 600/700 SWITCHBACK/DRAGON SWITCHBACK ALL OPTIONS (S08PR6/PS6/PR7/PS7)
Схема
Детали

Номер
Наименование детали
Цена
1
KIT-SHT BLK S3470-7400-PU7J [700] NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston and crankshaft assembly. Prior authorization is required for warranty consideration. art. 2203708
По запросу
1
KIT-SHT BLK S3468-6044-PU6H [600] NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston and crankshaft assembly. Prior authorization is required for warranty consideration. art. 2203601
По запросу
2
STOP-TORQUE,COURSE,3/8-16 1.50 art. 3021354
По запросу
3
Гайка Polaris art. 7542404
По запросу
4
WELD-TORQUE STOP art. 1015359
По запросу
5
SCR-3/8-16X1-P30-SPEC-Y art. 7517854
По запросу
6
WELD-TORQUE STOP/ENGINE MOUNT art. 1015415
По запросу
7
WELD-NUT PLATE, REAR art. 1015202
По запросу
8
Заклепка Polaris art. 7661637
По запросу
9
RUBBER ISOLATOR art. 3023428
По запросу
10
ENGINE MOUNT STRAP, LEFT, SDI art. 5135856
По запросу
11
Болт M10X1.50X35 Polaris art. 7518644
По запросу
12
ENGINE MOUNT, BOTTOM, 3/8, RUBB art. 5413303
от 3 119 ₽
13
ENGINE RUBBER TOP MOUNT, 3/8 art. 5413350
от 3 119 ₽
14
ASM- CLINCH NUT PLATE art. 1016001
По запросу
15
WASHER,FLAT(10) art. 7555915
По запросу
16
WASHER,FLAT(10) art. 7555893
По запросу
17
NYLOK NUT art. 7542451
По запросу
18
BOLT3/8-16X2.25HXCSGR8-Y,SPPT art. 7518782
По запросу
19
ENGINE STRAP, RIGHT, MACHINED art. 5135326
По запросу
20
Пробка сливная переднего редуктора Polaris art. 7517632
По запросу
