модель 1998 года
- Модель Formula 600
- Код модели Formula 583 Deluxe

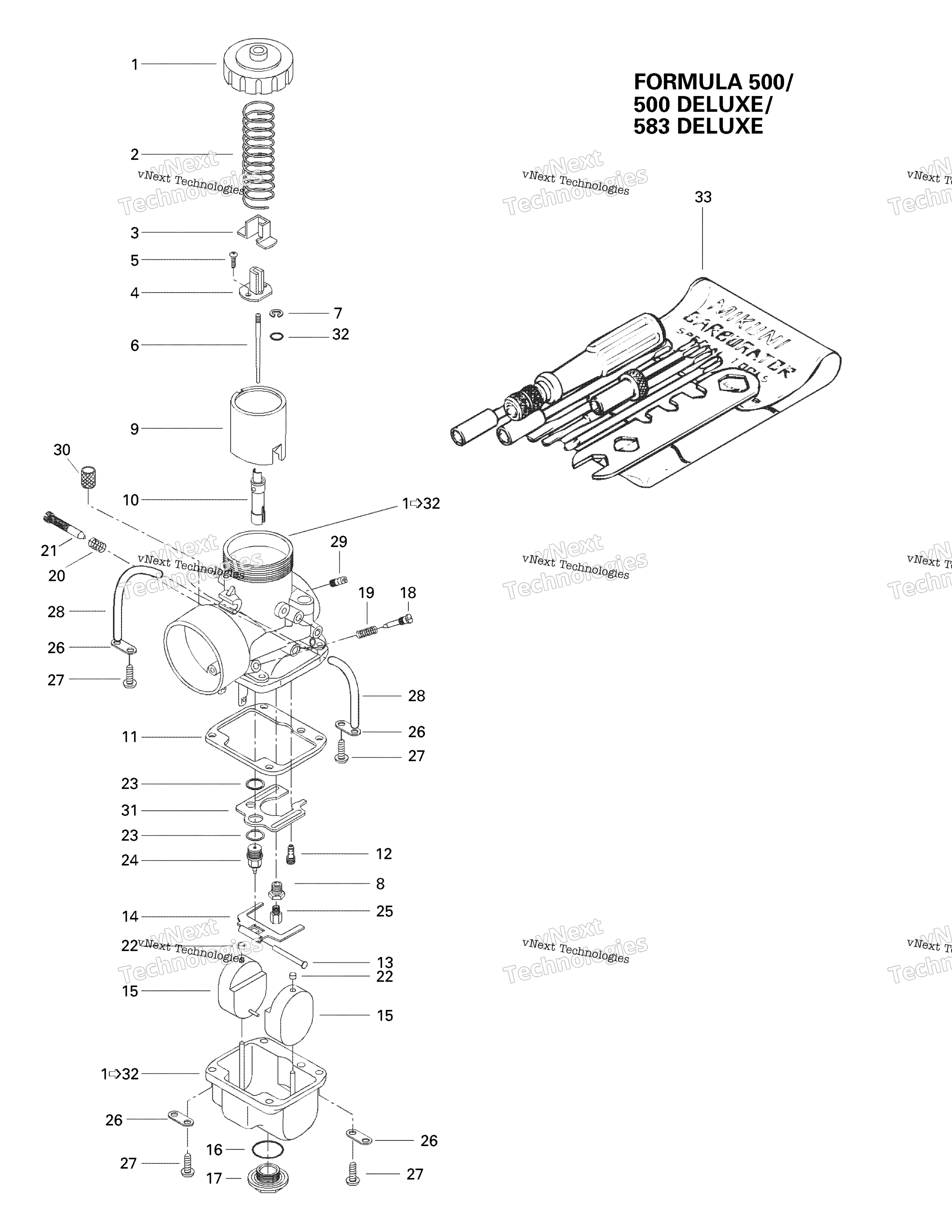

Схема карбюраторы для Formula 583 Deluxe
Схема
Детали
Номер
Наименование детали
Цена
0
Carburetor VM 38-379 (MAG) Formula 500. Formula 500 Deluxe. art. 403134100
По запросу
0
High Altitude Kit (Not Shown) Formula 583 Deluxe. art. 861761600
По запросу
0
High Altitude Kit, (Not Shown) Formula 500 Deluxe. art. 861761700
По запросу
0
Main Jet 260 Formula 583 Deluxe. art. 404100600
По запросу
0
Main Jet MJ 300 (PTO) Formula 500. Formula 500 Deluxe. art. 404162115
По запросу
0
Main Jet MJ 270 Formula 583 Deluxe. art. 404100400
По запросу
0
Needle Jet NJ-480-P7 Formula 583 Deluxe. art. 404156900
По запросу
0
Jet Needle J8 6DEY4 Formula 583 Deluxe. art. 404159900
По запросу
0
Carburetor VM 38-387 (MAG) Formula 583 Deluxe. art. 403136000
По запросу
1
Carburetor VM 38-378 (PTO) Includes 1 - 32. Formula 500. Formula 500 Deluxe. art. 403134000
По запросу
1
Carburetor VM 38-386 (PTO) Includes 1 - 32. Formula 583 Deluxe. art. 403135900
По запросу
1
COVER Formula 500. Formula 500 Deluxe. Formula 583 Deluxe. art. 404105100
По запросу
2
Пружина BRP art. 404154800
По запросу
3
Cover Formula 500. Formula 500 Deluxe. Formula 583 Deluxe. art. 404122100
По запросу
4
CONNECTOR Formula 500. Formula 500 Deluxe. Formula 583 Deluxe. art. 404160800
По запросу
5
Screw With Washer Formula 500. Formula 500 Deluxe. Formula 583 Deluxe. art. 404121300
По запросу
6
Jet Needle J8-6DHY48 Formula 500. Formula 500 Deluxe. art. 404161500
По запросу
7
E-Ring Formula 500. Formula 500 Deluxe. Formula 583 Deluxe. art. 404152400
По запросу
8
Guide Screw Formula 500. Formula 500 Deluxe. Formula 583 Deluxe. art. 404105500
По запросу
9
Piston Valve CA 2.5 Formula 500. Formula 500 Deluxe. Formula 583 Deluxe. art. 404131300
По запросу
10
Needle Jet NJ-480-Q3 Formula 500. Formula 500 Deluxe. art. 404160900
По запросу
11
GASKET Formula 500. Formula 500 Deluxe. Formula 583 Deluxe. art. 404104700
По запросу
12
PILOT JET 50 Formula 500. Formula 500 Deluxe. Formula 583 Deluxe. art. 404109500
По запросу
13
Lever Pin Formula 500. Formula 500 Deluxe. Formula 583 Deluxe. art. 404103300
По запросу
14
FLOAT LEVER Formula 500. Formula 500 Deluxe. Formula 583 Deluxe. art. 404105000
По запросу
15
FLOAT Formula 500. Formula 500 Deluxe. Formula 583 Deluxe. art. 404105400
По запросу
16
O-RING Formula 500. Formula 500 Deluxe. Formula 583 Deluxe. art. 404101500
По запросу
17
DRAIN PLUG SCREW Formula 500. Formula 500 Deluxe. Formula 583 Deluxe. art. 404105600
По запросу
18
AIR SCREW Formula 500. Formula 500 Deluxe. Formula 583 Deluxe. art. 404149000
По запросу
19
SPRING Formula 500. Formula 500 Deluxe. Formula 583 Deluxe. art. 404139800
По запросу
20
Пружинка троса подсоса Can Am art. 404101700
от 578 ₽
21
IDLE SPEED SCREW Formula 500. Formula 500 Deluxe. Formula 583 Deluxe. art. 404102800
По запросу
22
Cap Formula 500. Formula 500 Deluxe. Formula 583 Deluxe. art. 404105800
от 736 ₽
23
Seat Washer Formula 500. Formula 500 Deluxe. Formula 583 Deluxe. art. 404101600
По запросу
24
Игла карбюратора BRP art. 404147400
По запросу
25
Жиклер карбюратора 330 Ski Doo art. 404101400
от 882 ₽
26
PLATE Formula 500. Formula 500 Deluxe. Formula 583 Deluxe. art. 404103000
По запросу
27
Screw With Lock Washer Formula 500. Formula 500 Deluxe. Formula 583 Deluxe. art. 404102000
По запросу
28
Hose Formula 500. Formula 500 Deluxe. Formula 583 Deluxe. art. 404161880
По запросу
29
Nipple Formula 500. Formula 500 Deluxe. Formula 583 Deluxe. art. 404153400
По запросу
30
Filter Formula 500. Formula 500 Deluxe. Formula 583 Deluxe. art. 404158900
По запросу
31
Baffle Plate Formula 500. Formula 500 Deluxe. Formula 583 Deluxe. art. XXXX
По запросу
32
Прокладка иглы карбюратора BRP art. 404117000
По запросу
33
TOOL KIT Formula 500. Formula 500 Deluxe. Formula 583 Deluxe. art. 404112000
По запросу
34
High Altitude Kit, (Not Shown) Formula 500. art. 861761800
По запросу
