модель 2001 года
- Модель Formula 500
- Код модели Formula Deluxe 500/600/700

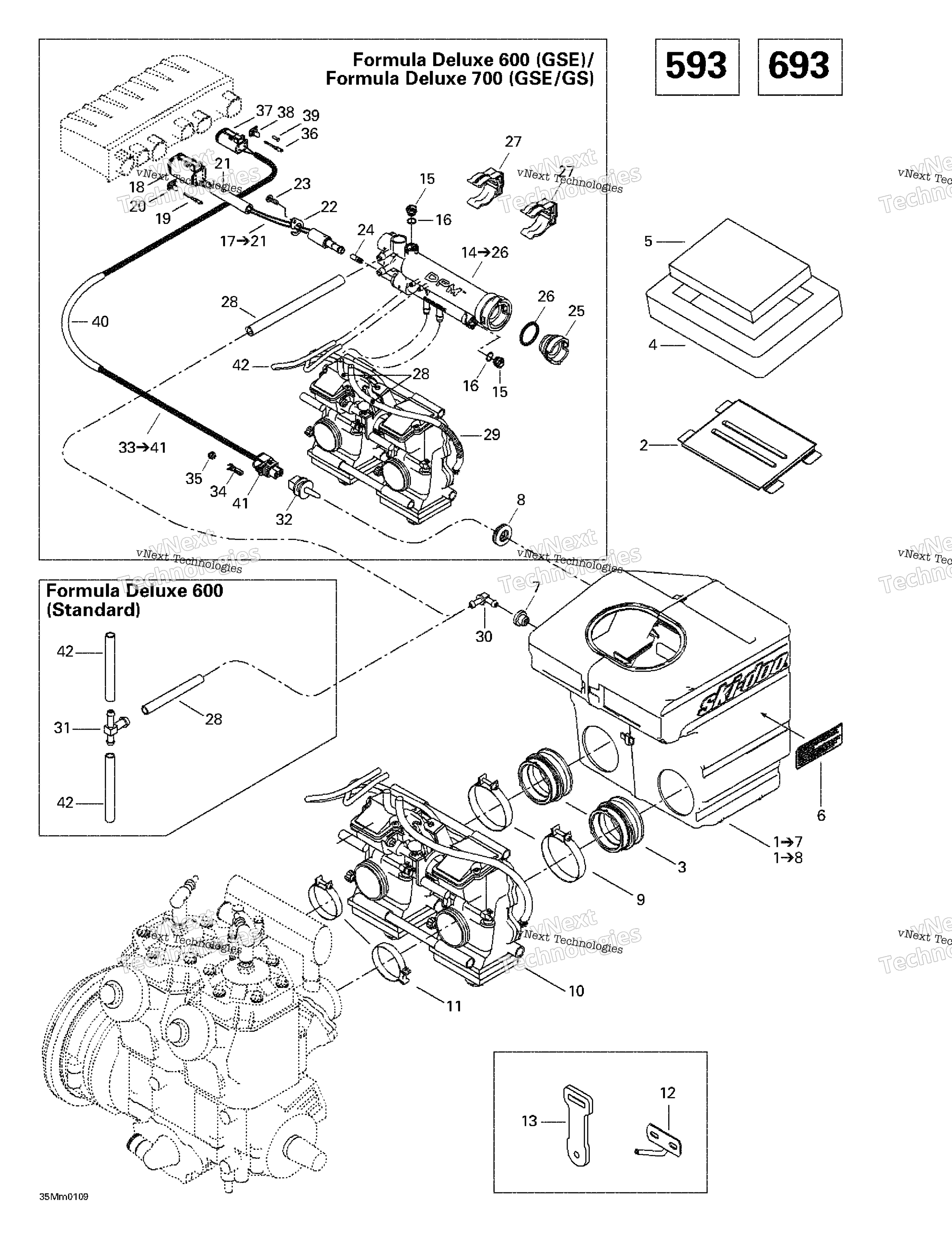

Схема воздушный впуск System (593, 693) для Formula Deluxe 500/600/700
Схема
Детали
Номер
Наименование детали
Цена
0
CARBURETOR KIT TM 40 B-115 Formula Deluxe 700. art. 403138671
По запросу
1
Air Intake Ass’y (GSE) Includes 1 - 8. Formula Deluxe 600. art. 508000140
По запросу
1
Air Intake Ass’y (GSE/GS) Includes 1 - 8. Formula Deluxe 700. art. 508000169
По запросу
1
Air Intake Ass’y (Standard) Includes 1 - 7. Formula Deluxe 600. art. 508000139
По запросу
2
INTAKE GRILL Formula Deluxe 600. Formula Deluxe 700. art. 508000004
По запросу
3
Air Intake Adaptor, 40 mm Formula Deluxe 600. Formula Deluxe 700. art. 508000092
По запросу
4
Lower Foam Formula Deluxe 600. Formula Deluxe 700. art. 508000099
По запросу
5
Air Filter Formula Deluxe 600. Formula Deluxe 700. art. 508000154
По запросу
6
Caution Label Formula Deluxe 600. Formula Deluxe 700. art. 516000130
По запросу
7
Шайба BRP art. 513032908
По запросу
8
GROMMET Formula Deluxe 600. Formula Deluxe 700. art. 570065500
По запросу
9
Хомут BRP art. 508000346
от 896 ₽
10
CARBURETOR KIT TM 40 B-112 Formula Deluxe 600. art. 403138670
По запросу
11
Clamp Formula Deluxe 600. Formula Deluxe 700. art. 512059835
По запросу
12
Carburetor Bracket Formula Deluxe 600. Formula Deluxe 700. art. 512059369
По запросу
13
CARBURETOR LATCH Formula Deluxe 600. Formula Deluxe 700. art. 512059372
По запросу
14
Pressure Manifold Ass’y (GSE) Includes 14 - 26. Formula Deluxe 600. art. 512059342
По запросу
14
Pressure Manifold Ass’y (GSE/GS) Includes 14 - 26. Formula Deluxe 700. art. 512059408
По запросу
15
Cap Formula Deluxe 600. Formula Deluxe 700. art. 512058921
По запросу
16
O-Ring Formula Deluxe 600. Formula Deluxe 700. art. 512058925
По запросу
17
Pressure Manifold Harness Includes 17 - 21. Formula Deluxe 600. Formula Deluxe 700. art. 515175271
По запросу
18
FEMALE HOUSING, 6 CIRCUITS Formula Deluxe 600. Formula Deluxe 700. art. 409015400
По запросу
19
FEMALE TERMINAL Formula Deluxe 600. Formula Deluxe 700. art. 409015100
По запросу
20
FEMALE LOCK, 6 CIRCUITS Formula Deluxe 600. Formula Deluxe 700. art. 409014900
По запросу
21
Tubing 10 MM 1000MM Long Formula Deluxe 600. Formula Deluxe 700. art. 219704407
По запросу
22
SOLENOID LOCK Formula Deluxe 600. Formula Deluxe 700. art. 415061600
По запросу
23
Болт самонарезной K40 x 10 BRP art. 241140060
от 263 ₽
24
STARTER JET Formula Deluxe 600. Formula Deluxe 700. art. 404161825
По запросу
25
Cap Formula Deluxe 600. Formula Deluxe 700. art. 512058949
По запросу
26
O-Ring Formula Deluxe 600. Formula Deluxe 700. art. 512058950
По запросу
27
SUPPORT Formula Deluxe 600. Formula Deluxe 700. art. 512058919
По запросу
28
Was 415080200 Hose, Polyurethane Formula Deluxe 600. Formula Deluxe 700. art. 219704410
По запросу
29
Was 409901700 Tubing (9 mm) Formula Deluxe 600. Formula Deluxe 700. art. 219704399
По запросу
30
Elbow Male Connector Formula Deluxe 600. Formula Deluxe 700. art. 414580600
По запросу
31
T-Fitting art. 572045500
По запросу
32
Датчик воздуха Sea Doo art. 270600000
от 9 020 ₽
33
Temperature Harness Includes 33 - 41. Formula Deluxe 600. Formula Deluxe 700. art. 515175589
По запросу
34
Разъем электрический Can Am art. 278000998
По запросу
35
Сальник проводки Sea Doo art. 278000999
По запросу
36
FEMALE TERMINAL Formula Deluxe 600. Formula Deluxe 700. art. 409015100
По запросу
37
Female Terminal Housing (4 circuits) Formula Deluxe 600. Formula Deluxe 700. art. 515175245
По запросу
38
Female Lock (4 circuits) Formula Deluxe 600. Formula Deluxe 700. art. 515175246
По запросу
39
PLUG Formula Deluxe 600. Formula Deluxe 700. art. 515175303
По запросу
40
Was 705004062 Protector Tube Formula Deluxe 600. Formula Deluxe 700. art. 219704424
По запросу
41
FEMALE TERMINAL HOUSING, 2 CIRCUITS Formula Deluxe 600. Formula Deluxe 700. art. 515175588
По запросу
42
HOSE Formula Deluxe 600. Formula Deluxe 700. art. 404161904
По запросу
