модель 2005 года
- Модель Raptor 660
- Код модели 660R RAPTOR (YFM660RT)

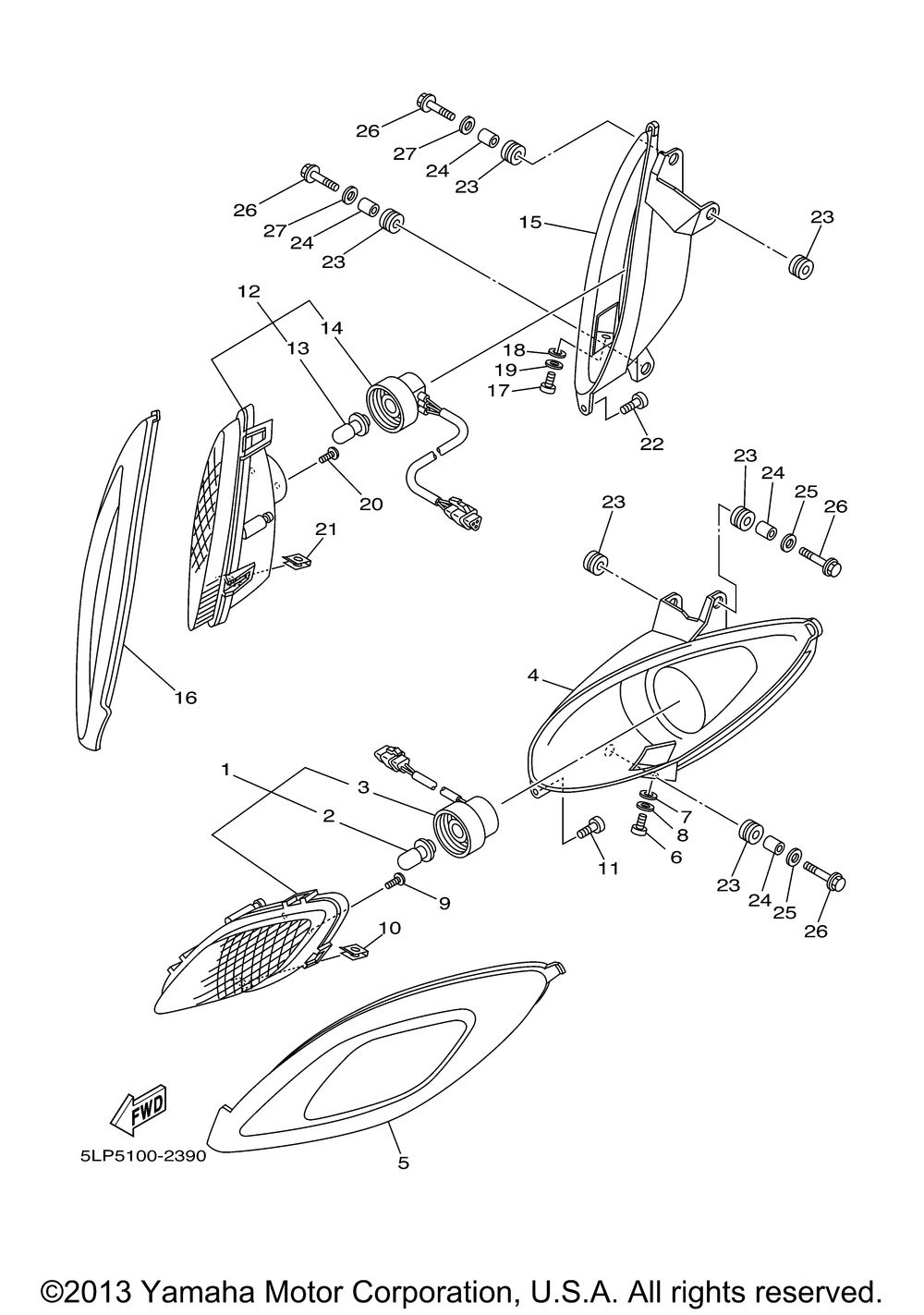

Схема фары для 660R RAPTOR (YFM660RT)
Схема
Детали
Номер
Наименование детали
Цена
1
Фара левая Yamaha art. 5LP-84310-02-00
от 12 737 ₽
2
Лампочка 12v30 30w Yamaha art. 4KB-84314-01-00
от 1 420 ₽
3
SOCKET CORD ASSY 1This item has been discontinued and may not be available. Contact us for more information. art. 5LP-84340-00-00
По запросу
4
BODY, HEADLIGHT (LEF art. 5LP-84111-00-00
По запросу
5
RIM art. 5LP-8411G-00-00
По запросу
6
SCREW, ADJUSTINGThis item has been discontinued and may not be available. Contact us for more information. art. 5LP-8433E-00-00
По запросу
7
WASHER, PLAINThis item has been discontinued and may not be available. Contact us for more information. art. 5LP-84344-00-00
По запросу
8
WASHER, PLAINThis item has been discontinued and may not be available. Contact us for more information. art. 5LP-84344-10-00
По запросу
9
SCREW, RIM ADJUSTINGThis item has been discontinued and may not be available. Contact us for more information. art. 5LP-84331-00-00
По запросу
10
NUT, ADJUSTING art. 5LP-84334-00-00
По запросу
11
SCREW, HEADLIGHTThis item has been discontinued and may not be available. Contact us for more information. art. 5LP-84526-00-00
По запросу
12
Фара правая Yamaha art. 5LP-84310-12-00
По запросу
13
Лампочка 12v30 30w Yamaha art. 4KB-84314-01-00
от 1 420 ₽
14
SOCKET CORD ASSY 1This item has been discontinued and may not be available. Contact us for more information. art. 5LP-84340-00-00
По запросу
15
BODY, HEADLIGHT (RIG art. 5LP-84111-10-00
По запросу
16
RIM art. 5LP-8411G-10-00
По запросу
17
SCREW, ADJUSTINGThis item has been discontinued and may not be available. Contact us for more information. art. 5LP-8433E-00-00
По запросу
18
WASHER, PLAINThis item has been discontinued and may not be available. Contact us for more information. art. 5LP-84344-00-00
По запросу
19
WASHER, PLAINThis item has been discontinued and may not be available. Contact us for more information. art. 5LP-84344-10-00
По запросу
20
SCREW, RIM ADJUSTINGThis item has been discontinued and may not be available. Contact us for more information. art. 5LP-84331-00-00
По запросу
21
NUT, ADJUSTING art. 5LP-84334-00-00
По запросу
22
SCREW, HEADLIGHTThis item has been discontinued and may not be available. Contact us for more information. art. 5LP-84526-00-00
По запросу
23
GROMMET(replaces 90480-14102-00) art. 90480-14023-00
По запросу
24
SPACER(replaces 90387-06595-00) art. 90560-07007-00
По запросу
25
Шайба, пластина art. 90201-06557-00
По запросу
26
BOLT,FLANGE(replaces 95807-06025-00) art. 95822-06025-00
По запросу
27
Шайба, пластина art. 90201-06557-00
По запросу
