модель 2022 года
- Модель Sportsman 570
- Код модели SPORTSMAN 570 EPS EBS ULTIMATE TRAIL 49S (A22SHZ57AE)

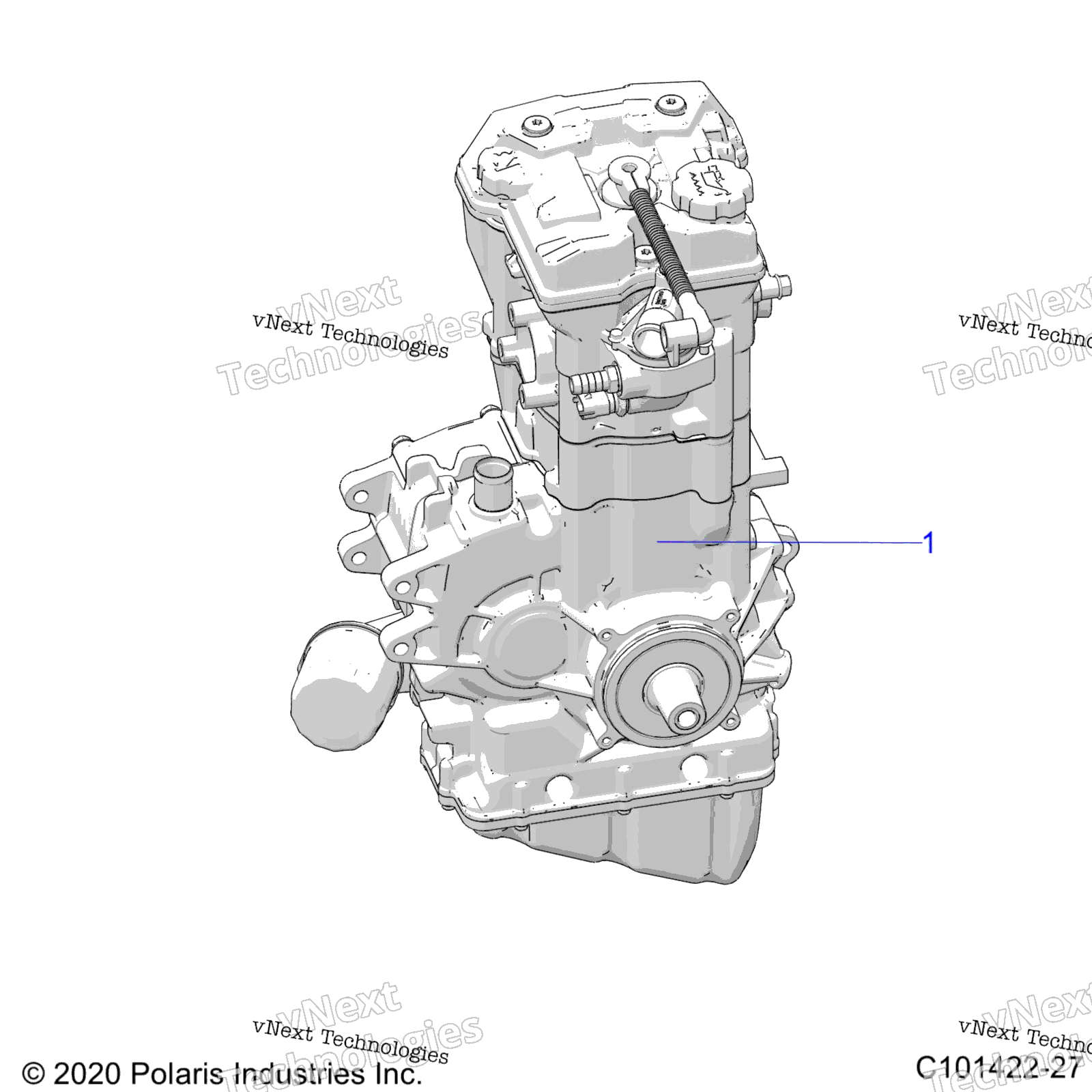

Схема двигатель Long Block для SPORTSMAN 570 EPS EBS ULTIMATE TRAIL 49S (A22SHZ57AE)
Схема
Детали
Номер
Наименование детали
Цена
1
K-LONG BLOCK ATV 570 [NOTE: THE LONG BLOCK
ASSEMBLY CONTAINS A CRANKCASE, BALANCE SHAFT, CYLINDER HEAD, PISTON AND
CRANKSHAFT ASSEMBLIES. ALSO INCLUDES THE SEALS, SPARK PLUG, VALVE COVER AND
OIL PUMP. PRIOR AUTHORIZATION REQUIRED.] art. 2208756
ASSEMBLY CONTAINS A CRANKCASE, BALANCE SHAFT, CYLINDER HEAD, PISTON AND
CRANKSHAFT ASSEMBLIES. ALSO INCLUDES THE SEALS, SPARK PLUG, VALVE COVER AND
OIL PUMP. PRIOR AUTHORIZATION REQUIRED.] art. 2208756
По запросу
