модель 2004 года
- Модель Big Bear 400
- Код модели BIG BEAR 400 2WD (YFM40S)

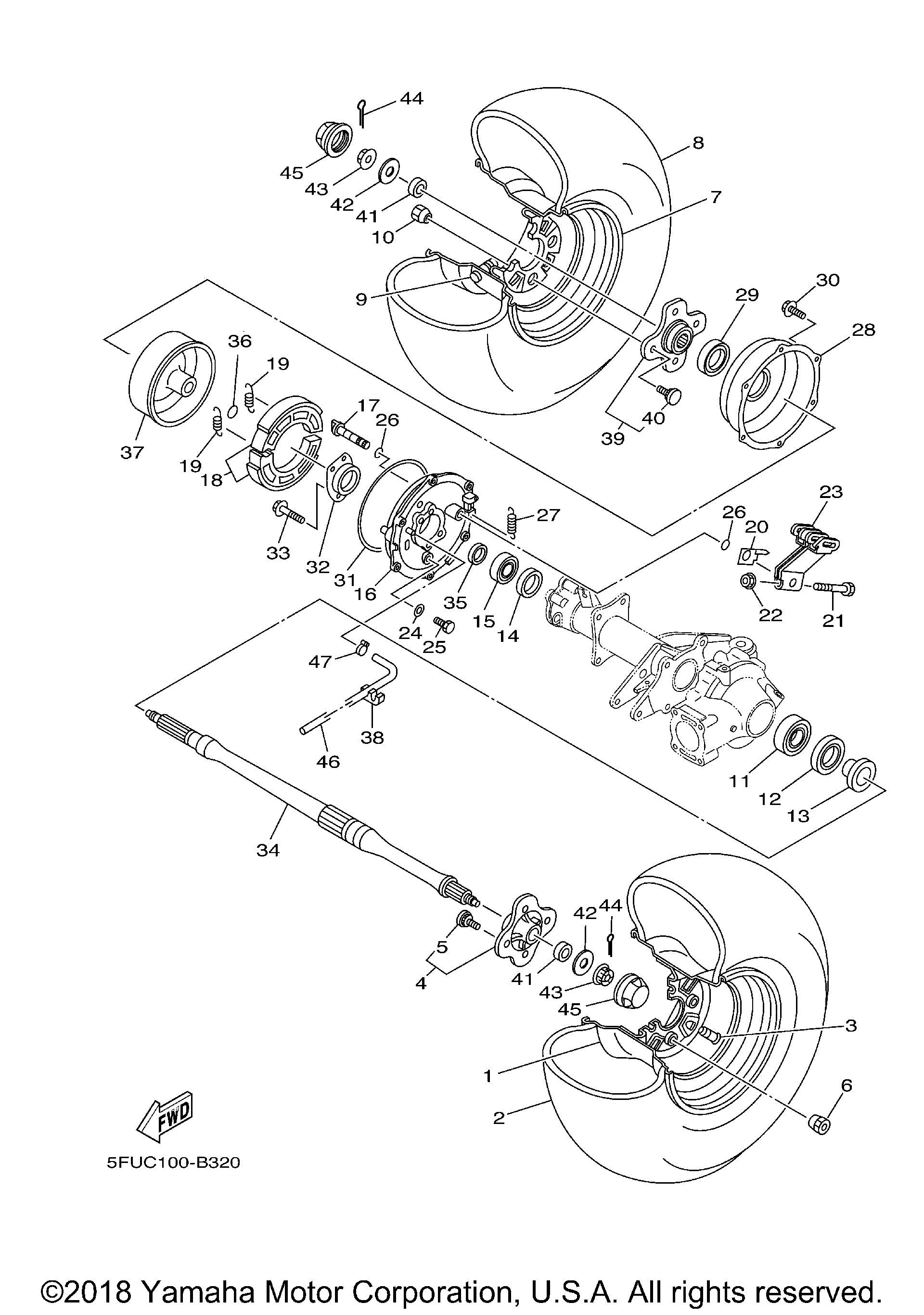

Схема заднего колеса для BIG BEAR 400 2WD (YFM40S)
Схема
Детали
Номер
Наименование детали
Цена
1
REAR WHEEL COMP. - (YMUS)This item has been discontinued and may not be available. Contact us for more information. art. 5GW-F5390-10-00
По запросу
2
TIRE (AT 25 X 11-10** KT125) - UR DUNLOP(replaces 94111-10800-00) This item has been discontinued and may not be available. Contact us for more information. art. 94111-10800-XX
По запросу
2
TIRE (AT 25 X 11-10 M908) - UR CHENG SHINThis item has been discontinued and may not be available. Contact us for more information. art. 94111-10801-00
По запросу
3
Нипель колеса Yamaha art. 93900-00812-00
от 990 ₽
4
Ступица Yamaha art. 2HR-25383-01-00
По запросу
5
Шпилька Yamaha art. 90114-10014-00
от 882 ₽
6
NUT art. 90179-10540-00
По запросу
7
REAR WHEEL COMP. - (YMUS)This item has been discontinued and may not be available. Contact us for more information. art. 5GW-F5390-10-00
По запросу
8
TIRE (AT 25 X 11-10** KT125) - UR DUNLOP(replaces 94111-10800-00) This item has been discontinued and may not be available. Contact us for more information. art. 94111-10800-XX
По запросу
8
TIRE (AT 25 X 11-10 M908) - UR CHENG SHINThis item has been discontinued and may not be available. Contact us for more information. art. 94111-10801-00
По запросу
9
Нипель колеса Yamaha art. 93900-00812-00
от 990 ₽
10
NUT art. 90179-10540-00
По запросу
11
Подшипник Yamaha art. 93306-008Y1-00
от 4 179 ₽
12
Сальник Yamaha art. 93106-47040-00
от 4 179 ₽
13
Сальник ступицы Yamaha art. 4SH-25367-01-00
от 4 946 ₽
14
Сальник редуктора Yamaha art. 93101-35097-00
от 2 153 ₽
15
BEARING - (YMUS) art. 93306-278Y0-00
По запросу
16
PLATE, BRAKE SHOE - (YMUS)This item has been discontinued and may not be available. Contact us for more information. art. 5FU-F5321-10-00
По запросу
17
CAMSHAFT - (YMUS)This item has been discontinued and may not be available. Contact us for more information. art. 5FU-F5351-00-00
По запросу
18
BRAKE SHOE SET - (YMUS) art. 5FU-WF536-00-00
По запросу
19
SPRING, RETURN - (YMUS) art. 4XE-F5133-00-00
По запросу
20
PLATE, INDICATOR - (YMUS)This item has been discontinued and may not be available. Contact us for more information. art. 4XE-F513A-00-00
По запросу
21
BOLT, FITTING - (YMUS)This item has been discontinued and may not be available. Contact us for more information. art. 4XE-F5833-00-00
По запросу
22
NUT, FLANGE(replaces 9570L-06500-00) art. 95780-06500-00
По запросу
23
LEVER, CAMSHAFT - (YMUS) art. 5FU-F5355-00-00
По запросу
24
GASKET - (YMUS)This item has been discontinued and may not be available. Contact us for more information. art. 4XE-F5898-00-00
По запросу
25
BOLT, CALIPER - (YMUS)This item has been discontinued and may not be available. Contact us for more information. art. 4XE-F5818-00-00
По запросу
26
SEAL, DUST - (YMUS) art. 4XE-F5816-00-00
По запросу
27
Пружина Yamaha art. 90506-16482-00
от 725 ₽
28
COVER, PLATE - (YMUS)(replaces 5FU-F5327-00-00) art. 5FU-F5327-01-00
По запросу
29
Сальник Yamaha art. 5FU-F5319-10-00
от 1 596 ₽
30
BOLT, FLANGE - (YMUS)(replaces 9582P-06012-00) art. 95812-06012-00
По запросу
31
SEAL, DUST - (YMUS) art. 5FU-F537Y-00-00
По запросу
32
RETAINER - (YMUS) art. 4XE-G6513-00-00
По запросу
33
BOLT, FLANGE - (YMUS)(replaces 90105-08892-00) art. 90105-088A4-00
По запросу
34
AXLE, WHEEL - (YMUS)(replaces 5FU-F5381-00-00) art. 5FU-F5381-01-00
По запросу
35
COLLAR art. 90387-284T0-00
По запросу
36
O-RING(replaces 93210-26606-00) art. 93210-26662-00
По запросу
37
DRUM, BRAKE - (YMUS) art. 5FU-F5310-10-00
По запросу
38
CLIP art. 90468-15020-00
По запросу
39
COLLAR, WHEEL - UR (YMUS)(replaces 5FU-F5377-00-00) art. 5FU-F5377-11-00
По запросу
40
Шпилька колесная Yamaha art. 1P0-F5411-00-00
от 326 ₽
41
Шайба Yamaha art. 5FU-F5384-00-00
По запросу
42
Шайба Yamaha art. 90201-16804-00
от 1 190 ₽
43
NUT, CASTLE art. 90171-16001-00
По запросу
44
PIN, COTTER(replaces 91401-30030-00) art. 91490-30030-00
от 118 ₽
Аналог
Шплинт гайки гребного винта Skipper для Suzuki/Yamaha/Tohatsu 4-225
art. SK91490-30030
118 ₽
Требуется 2 шт.
45
CAP, WHEEL art. 5GT-2512A-00-00
По запросу
46
HOSE (L1000) - (YMUS)This item has been discontinued and may not be available. Contact us for more information. art. 90445-078C3-00
По запросу
47
.CLIP art. 90467-07093-00
По запросу
