модель 2008 года
- Модель Wolverine 450
- Код модели WOLVERINE 450 4WD (YFM45FXXGY/YFM45FXXL)

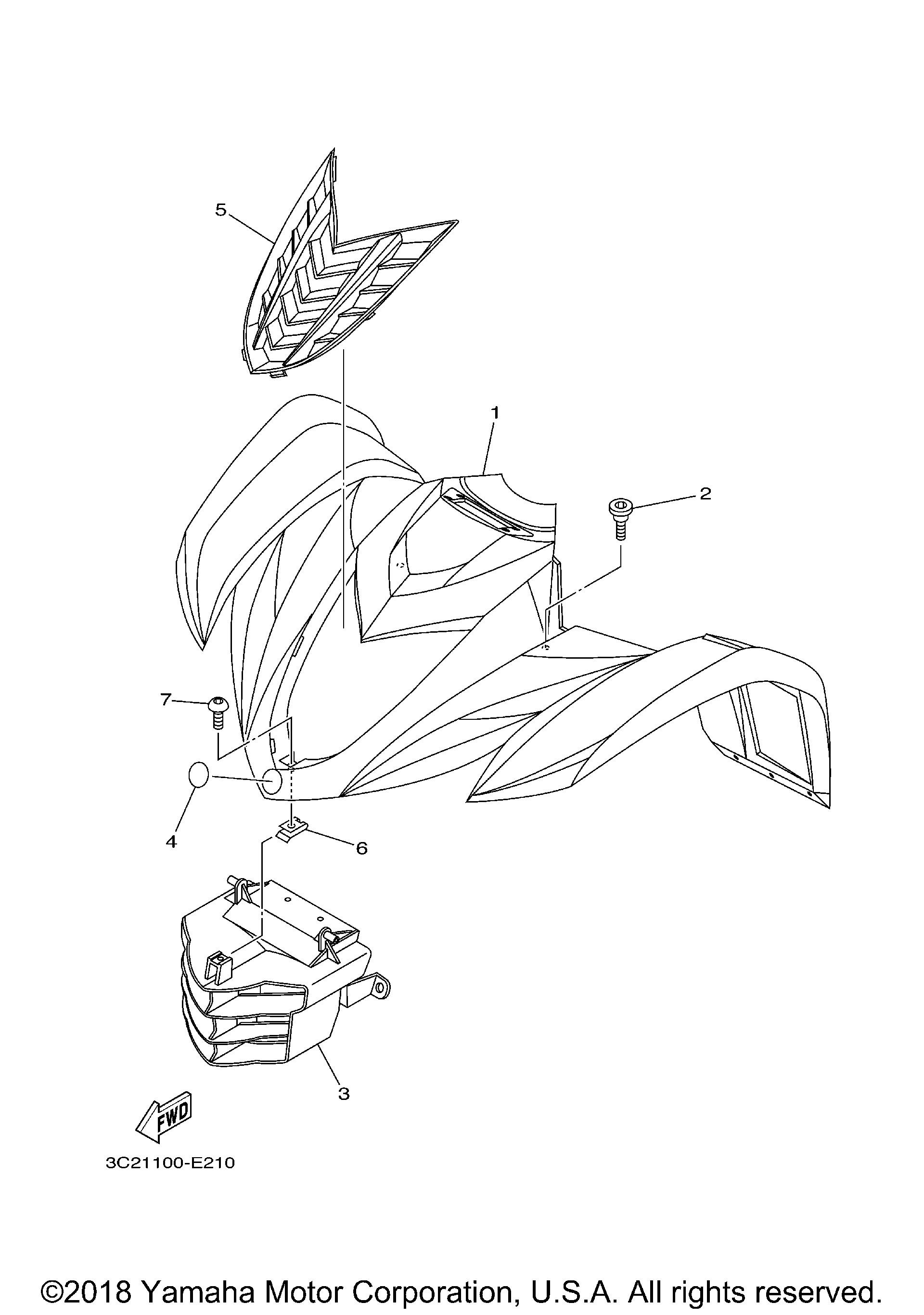

Схема переднего крыла для WOLVERINE 450 4WD (YFM45FXXGY/YFM45FXXL)
Схема
Детали
Номер
Наименование детали
Цена
1
FRONT FENDER ASSY - UR FOR DPBSE(replaces 3C2-F1500-00-00) This item has been discontinued and may not be available. Contact us for more information. art. 3C2-F1500-90-00
По запросу
1
FRONT FENDER ASSY - UR FOR PGDThis item has been discontinued and may not be available. Contact us for more information. art. 3C2-F1500-40-00
По запросу
2
BOLT(replaces 90109-08076-00) art. 90109-08077-00
По запросу
3
GRILLE, FRONTThis item has been discontinued and may not be available. Contact us for more information. art. 3C2-F8309-00-00
По запросу
4
TUNING FORK MARKThis item has been discontinued and may not be available. Contact us for more information. art. 3C2-F836B-00-00
По запросу
5
FENDER, FRONT 2 - UR FOR PGDThis item has been discontinued and may not be available. Contact us for more information. art. 3C2-F1556-80-00
По запросу
5
FENDER, FRONT 2 - UR FOR DPBSEThis item has been discontinued and may not be available. Contact us for more information. art. 3C2-F1556-A0-00
По запросу
6
NUT, SPRING art. 90183-050A8-00
По запросу
7
BOLT, HEXAGON SOCKET HEAD(replaces 90110-05201-00) art. 90111-05059-00
По запросу
Другие схемы модели
Переднее крыло
