модель 2005 года
- Модель Rhino 660
- Код модели RHINO (YXR660FAT)

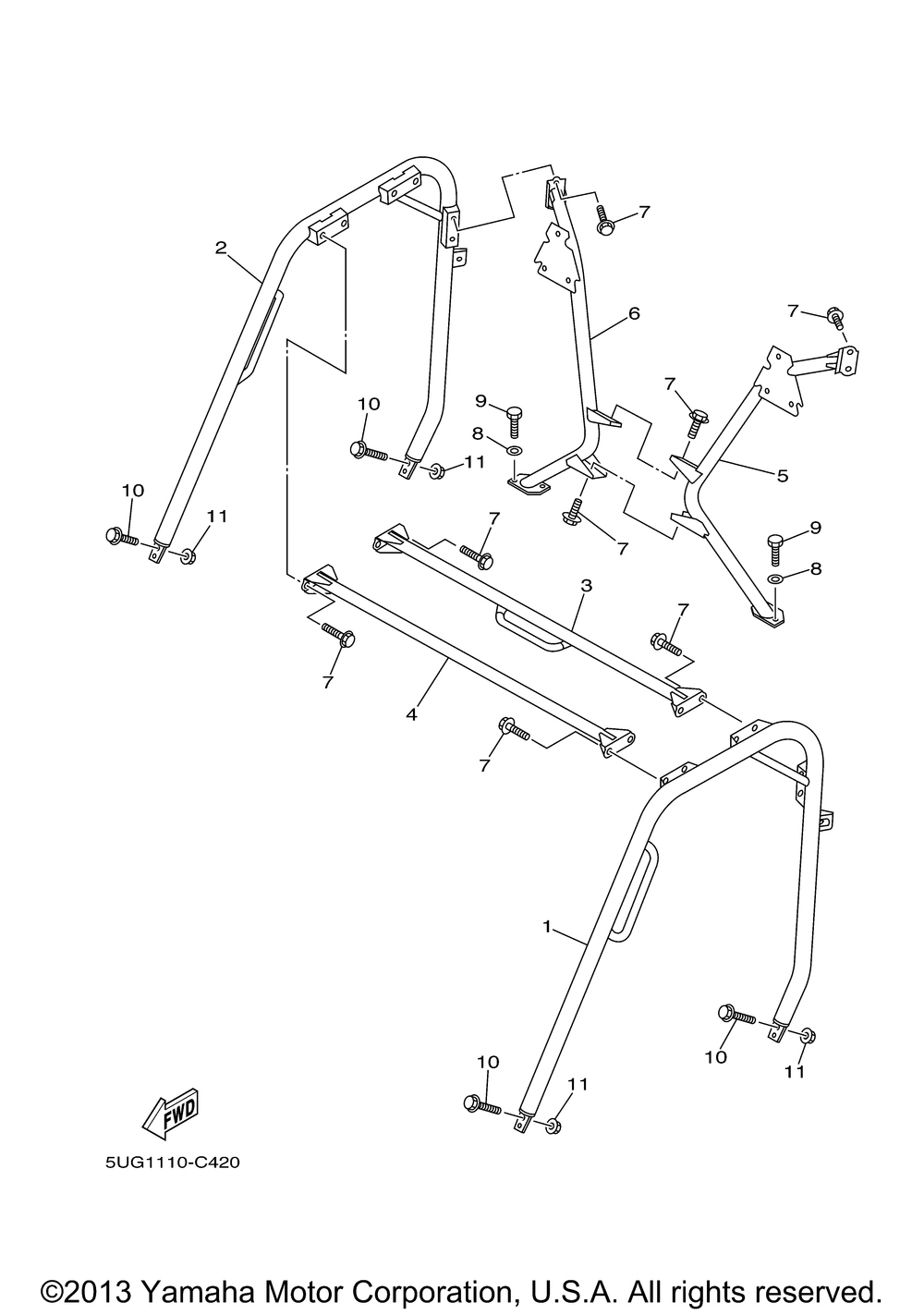

Схема защиты 2 для RHINO (YXR660FAT)
Схема
Детали
Номер
Наименование детали
Цена
1
SUPPORT ROOF 3 (BLAC(replaces 5UG-K831A-10-00) This item has been discontinued and may not be available. Contact us for more information. art. 5UG-K831A-11-00
По запросу
2
SUPPORT, ROOF 4 (BLA(replaces 5UG-K831E-10-00) This item has been discontinued and may not be available. Contact us for more information. art. 5UG-K831E-11-00
По запросу
3
MEMBER, CROSS ROOF ((replaces 5UG-K8336-01-00) This item has been discontinued and may not be available. Contact us for more information. art. 5UG-K8336-02-00
По запросу
4
MEMBER, ROOF FRAME (This item has been discontinued and may not be available. Contact us for more information. art. 5UG-K8392-01-00
По запросу
5
MEMBER, ROOF FRAME (This item has been discontinued and may not be available. Contact us for more information. art. 5UG-K8393-10-00
По запросу
6
MEMBER, ROOF FRAME (This item has been discontinued and may not be available. Contact us for more information. art. 5UG-K8394-10-00
По запросу
7
Болт Yamaha art. 95817-10020-00
По запросу
8
WASHER,PLATE art. 90201-10774-00
По запросу
9
Болт Yamaha art. 97017-10025-00
от 450 ₽
10
BOLT,FLANGE (4GB) art. 95817-10045-00
По запросу
11
NUT,SELF-LOCKING(replaces 9560P-10200-00) art. 90185-10154-00
По запросу
