модель 2003 года
- Модель Firecat 700
- Код модели FIRECAT 700 EFI (RED) (S2003F7FEFUSR)

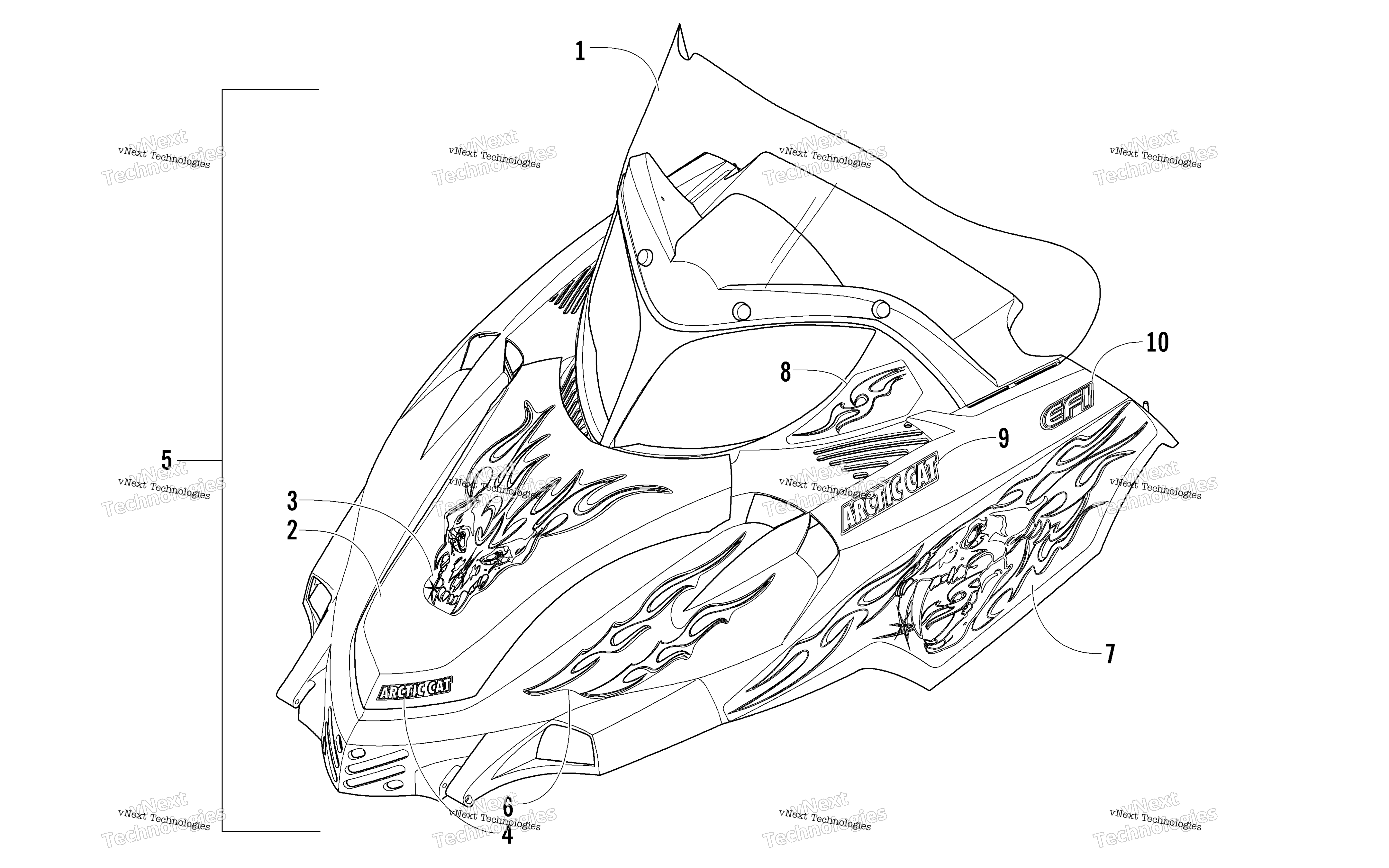

Схема Hood и Windshield узла для FIRECAT 700 EFI (RED) (S2003F7FEFUSR)
Схема
Детали
Номер
Наименование детали
Цена
1
Windshield Chrome art. 2606-834
По запросу
2
Cover, Hood (Green) (inc. 3-4) art. 1718-296
По запросу
2
Cover, Hood (Black) (inc. 3-4) (Black/International) art. 1718-297
По запросу
2
Cover, Hood (Red) (inc. 3-4) (Red) art. 1718-298
По запросу
3
Decal, Hood - Center (Red) art. 4611-964
По запросу
3
Decal, Hood - Center art. 4611-963
По запросу
3
Decal, Hood - Center (Black International) art. 4611-962
По запросу
4
Decal, "Arctic Cat" - Cover (Red) art. 4611-958
По запросу
4
Decal, “Arctic Cat” - Rear art. 4611-957
По запросу
4
Decal, "Arctic Cat" - Cover (Black/International) art. 4611-956
По запросу
5
Hood w/Decals (Green) (inc. 6-9) art. 1718-265
По запросу
5
Hood w/Decals (Red) (inc. 6-10) (700 EFI Red) art. 1718-344
По запросу
5
Hood w/Decals (Black) (inc. 6-10) (700 EFI Black/International) art. 1718-343
По запросу
5
Hood w/Decals (Black) (inc. 6-9) (Black/International) art. 1718-266
По запросу
5
Hood w/Decals (Red) (inc. 6-9) (Red) art. 1718-267
По запросу
5
Hood w/Decals (Green) (inc. 6-10) (700 EFI Green) art. 1718-342
По запросу
6
Decal, Hood - Front - Right art. 4611-974
По запросу
6
Decal, Hood - Front - Left (Red) art. 4611-983
По запросу
6
Decal, Hood - Front - Right (Red) art. 4611-982
По запросу
6
Decal, Hood - Front - Left art. 4611-975
По запросу
6
Decal, Hood - Front - Right (Black/International) art. 4611-948
По запросу
6
Decal, Hood - Front - Left (Black/International) art. 4611-949
По запросу
7
Decal, Hood - Lower Right art. 4611-976
По запросу
7
Decal, Hood - Lower Left (Red) art. 4611-985
По запросу
7
Decal, Hood - Lower Right (Red) art. 4611-984
По запросу
7
Decal, Hood - Lower Left (Black/International) art. 4611-951
По запросу
7
Decal, Hood - Lower Right (Black/International) art. 4611-950
По запросу
7
Decal, Hood - Lower Left art. 4611-977
По запросу
8
Decal, Hood - Vent - Right art. 4611-980
По запросу
8
Decal, Hood - Vent - Left art. 4611-981
По запросу
8
Decal, Hood - Vent - Right (Black/International) art. 4611-954
По запросу
8
Decal, Hood - Vent - Left (Black/International) art. 4611-955
По запросу
8
Decal, Hood - Vent - Right (Red) art. 4611-988
По запросу
8
Decal, Hood - Vent - Left (Red) art. 4611-989
По запросу
9
Decal, “Arctic Cat” - Front art. 4611-960
По запросу
9
Decal, "Arctic Cat" - Hood - Upper (Black/International) art. 4611-959
По запросу
9
Decal, "Arctic Cat" - Hood - Upper (Red) art. 4611-961
По запросу
10
Decal, "EFI" (700 EFI Red) art. 5611-050
По запросу
10
Decal, "EFI" (700 EFI Black/International) art. 5611-048
По запросу
10
Decal, "EFI" (700 EFI Green) art. 5611-100
По запросу
