модель 2016 года
- Модель Ranger XP 900
- Код модели R16RT_87 RANGER 900 XP ALL OPTIONS R16RT_87 (R27)

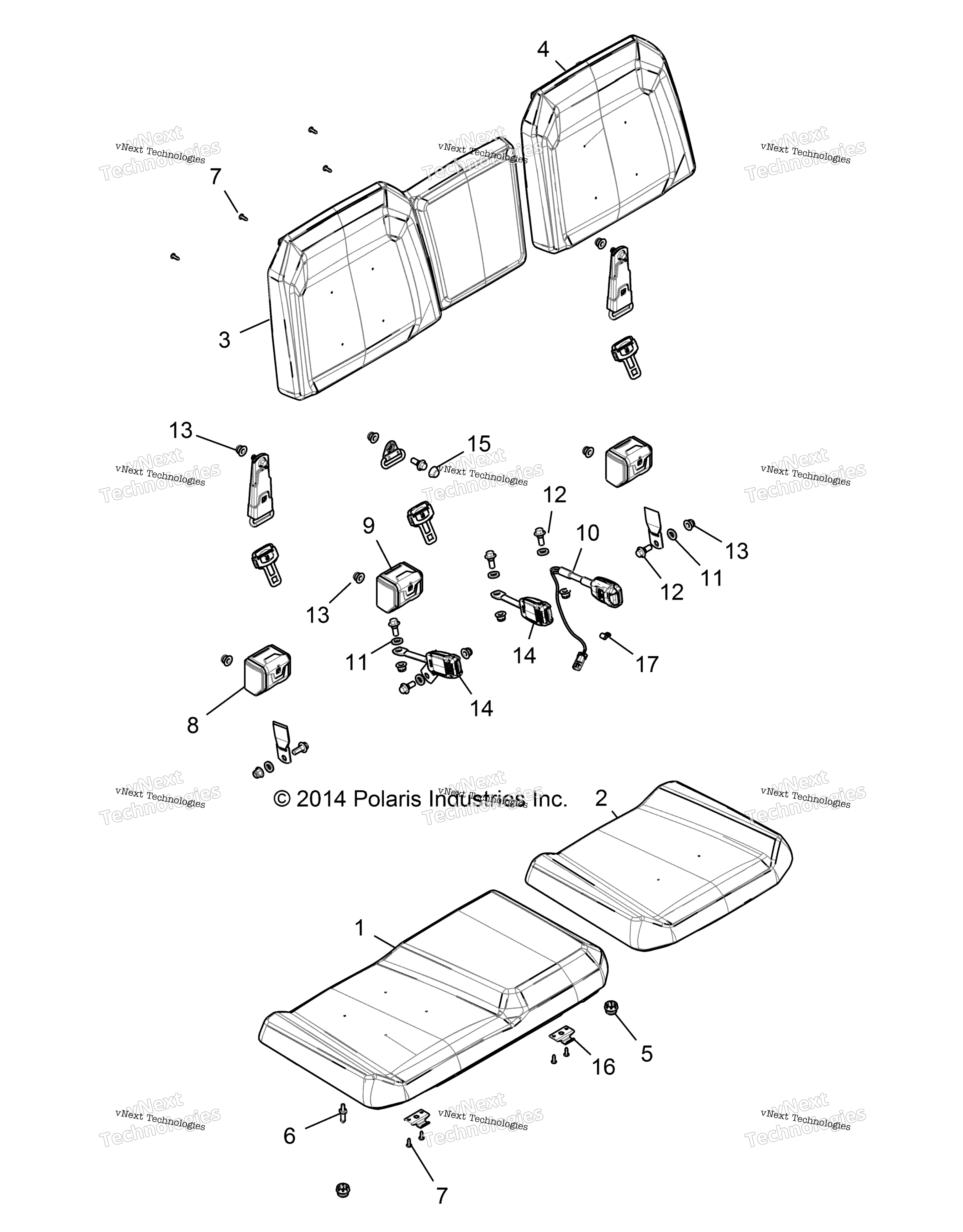

Схема body, Seat, 60 / 40 R16rte87a9 / Ak / Am / As / Av / B9 / Bk / Bm / Bs / Bv / Ag для R16RT_87 RANGER 900 XP ALL OPTIONS R16RT_87 (R27)
Схема
Детали
Номер
Наименование детали
Цена
1
SEAT BOTTOM ASSEMBY, 60, BLACK/ [INCL 6,QTY 4 OF 7][E87AS/BS] art. 2685141
По запросу
1
HEATER ELEMENT SEAT, TITANIUM [U87A9/B9] art. 2412575
По запросу
1
ASM-SEAT,BTM,60,RAWHIDE,RUS [INCL 6,QTY 4 OF 7][E87AG/BG] art. 2687013
По запросу
1
ASM-SEAT,BTM,HTR,60,BLK,WV/PPC [INCL 6,QTY 4 OF 7, HEATER ELEMENT][U87A9/B9] art. 2687000
По запросу
1
CVR-SEAT,BTM,60,WV/BLU/WHT ST [E87AV/BV] art. 2686946
По запросу
1
SEAT ASSEMBLY, BOTTOM, 60 [INCL 6,QTY 4 OF 7][E87AV/BV] art. 2686942
По запросу
1
CVR-SEAT BTM,60,WV/SLV/RED [E87AK/BK] art. 2686918
По запросу
1
ASM-SEAT,BTM,60,WV/SLV/RED [INCL 6,QTY 4 OF 7][E87AK/BK] art. 2686914
По запросу
1
CVR-SEAT BTM,60,BLK WV/PPC [E87A9/B9][U87A9/B9] art. 2686910
По запросу
1
Шестерня реверса 18 зубьев Polaris art. 9999999
По запросу
1
ASM-SEAT,BTM,HTR,60,BLK/S.RED [INCL 6,QTY 4 OF 7, HEATER ELEMENT][U87AS/BS] art. 2686315
По запросу
1
CVR-SEAT BTM,60,DK.STL/WHT [E87AM/BM] art. 2686294
По запросу
1
SEAT BOTTOM ASSEMBLY, 60 [INCL 6,QTY 4 OF 7][E87AM/BM] art. 2686258
По запросу
1
CVR-SEAT BTM,60,O.MAD/WHT [M87AL/BL] art. 2686286
По запросу
1
SEAT BOTTOM ASSEMBLY, 60 [INCL 6,QTY 4 OF 7][M87AL/BL] art. 2686240
По запросу
1
COVERING-BTM 60,BLK/BLUE FIRE [U87AB/BB] art. 2685899
По запросу
1
ASM-SEAT,BTM 60,BLK/BLUE FIRE [INCL 6,QTY 4 OF 7][U87AB/BB] art. 2685895
По запросу
1
COVERING-BTM 60,BLK/S.RED [E87AS/BS] art. 2685350
По запросу
2
HEATER ELEMENT SEAT, TITANIUM [U87AS/BS] art. 2412575
По запросу
2
ASM-SEAT,BTM,40,BLK WV/PPC [U87A9/B9] art. 2686907
По запросу
2
ASM-SEAT,BTM,HTR,40,BLK,WV/PPC [BS] art. 2687003
По запросу
2
Шестерня реверса 18 зубьев Polaris art. 9999999
По запросу
2
ASM-SEAT,BTM,40.WV/SLV/RED [U87AB/BB] art. 2686915
По запросу
2
CVR-SEAT BTM,40,WV/SLV/RED [U87AB/BB] art. 2686919
По запросу
2
SEAT BOTTOM ASSEMBLY [E87AM] art. 2686260
По запросу
2
CVR-SEAT BTM,40,DK.STL/WHT [E87AM/BM] art. 2686296
По запросу
2
ASM-SEAT,BTM,40,RAWHIDE,RUS [E87AG/BG] art. 2687016
По запросу
2
CVR-SEAT BACK,40,O.MAD/WHT [U87A9/B9] art. 2686287
По запросу
2
BOTTOM COVERING, 40, BLACK/SUNS [E87AV/BV] art. 2685360
По запросу
2
CVR-SEAT,BTM,40,WV/BLU/WHT ST [E87AV/BV] art. 2686947
По запросу
2
ASM-SEAT,BTM,HTR,40,BLK/S.RED [U87AS/BS] art. 2686316
По запросу
2
SEAT BOTTOM ASSEMBLY, 40 [M87AL/BL] art. 2686242
По запросу
2
CVR-SEAT BTM,40,O.MAD/WHT [M87AL/BL] art. 2686288
По запросу
2
SEAT ASM BOTTOM 40 BLACK/BLUE F [E87A9/B9] art. 2685896
По запросу
2
COVERING-BTM 40,BLK/BLUE FIRE [E87A9/B9][U87A9/B9] art. 2685900
По запросу
2
SEAT ASSEMBLY, BOTTOM, 40 [E87AV/BV] art. 2686943
По запросу
2
SEAT ASSEMBLY, BOTTOM, BLACK/SU [E87AS] art. 2685143
По запросу
3
SEAT ASM BACK 60 ORG MDN/WHITE [M87AL/BL] art. 2686239
По запросу
3
SEAT ASM BACK 40 ORG MDN W/ WHI [E87AV/BV] art. 2686241
По запросу
3
SEAT ASSEMBLY, BACK, 60 [E87AS/BS][U87AS/BS] art. 2685140
По запросу
3
COVERING-BACK 60,BLK/S.RED [E87AS/BS][U87AS/BS] art. 2685345
По запросу
3
ASM-SEAT,BACK,60,WV/SLV/RED [E87AK][[U87AB/BB] art. 2686912
По запросу
3
ASM-SEAT,BACK,60,RAWHIDE,RUS [E87AG/BG] art. 2687007
По запросу
3
CVR-SEAT BACK,60,O.MAD/WHT [E87AV/BV] art. 2686285
По запросу
3
CVR-SEAT BACK,60,WV/SLV/RED [U87AB/BB] art. 2686916
По запросу
3
ASM-SEAT,BACK,60,WV/BLU/WHT ST [E87AM/BM] art. 2686940
По запросу
3
CVR-SEAT,BACK,60,WV/BLU/WHT ST [E87AM/BM] art. 2686944
По запросу
3
ASM-SEAT,BACK 60 BLK/BLUE FIRE [E87A9/B9][U87A9/B9] art. 2685893
По запросу
3
COVERING-BACK 60,BLK/BLUE FIRE [E87A9/B9][U87A9/B9] art. 2685897
По запросу
4
CVR-SEAT BACK,40,RAWHIDE,RUS [E87AG/BG] art. 2687011
По запросу
4
ASM-SEAT,BACK,40,BLK WV/PPC [E87AS/BS][U87AS/BS] art. 2686905
По запросу
4
CVR-SEAT BACK,40,BLK WV/PPC [E87AS/BS][U87AS/BS] art. 2686909
По запросу
4
ASM-SEAT,BACK,40,WV/SLV/RED [U87AB/BB] art. 2686913
По запросу
4
CVR-SEAT BACK,40,WV/SLV/RED [U87AB/BB] art. 2686917
По запросу
4
ASM-SEAT,BACK,40,DK.STL/WHITE [E87AM] art. 2686259
По запросу
4
CVR-SEAT BACK,40,DK.STL/WHT [E87AM] art. 2686295
По запросу
4
ASM-SEAT,BACK,40,WV/BLU/WHT ST [E87ABM] art. 2686941
По запросу
4
ASM-SEAT,BACK,40,RAWHIDE,RUS [E87AG/BG] art. 2687010
По запросу
4
CVR-SEAT BTM,40,O.MAD/WHT [E87AV/BV] art. 2686288
По запросу
4
SEAT BOTTOM ASSEMBLY, 40 [E87AV/BV] art. 2686242
По запросу
4
COVERING-BACK 40,BLK/S.RED [E87AK/BK] art. 2685355
По запросу
4
ASM-SEAT,BACK,40,BLK/S.RED [E87AK/BK/AS] art. 2685142
По запросу
4
COVERING-BACK 40,BLK/BLUE FIRE [E87A9/B9][U87A9/B9] art. 2685898
По запросу
4
ASM-SEAT,BACK 40,BLK/BLUE FIRE [E87A9/B9][U87A9/B9] art. 2685894
По запросу
4
CVR-SEAT BACK,40,O.MAD/WHT [E87AM/BM] art. 2686287
По запросу
4
SEAT ASM BACK 40 ORG MDN W/ WHI [E87AM/BM] art. 2686241
По запросу
4
CVR-SEAT,BACK,40,WV/BLU/WHT ST [E87ABM] art. 2686945
По запросу
5
GROMMET art. 5439179
По запросу
6
SEAT LATCH PIN [ALL EXCEPT E87AG/BG] art. 5910404
По запросу
7
TORX SCREW, #14 X 3/4 art. 7519045
По запросу
8
ASM-SEAT BELT,3PT art. 2638785
По запросу
9
ASM-SEAT BELT,3PT,CENTER art. 2638784
По запросу
10
SEATBELT BUCKLE SWITCH art. 2637304
По запросу
11
SEATBELT WASHER, RUBBER art. 5813829
По запросу
12
HEX FLANGE SCREW 12MM X 1.75MM art. 7519770
По запросу
13
HEX FLANGE NUT, 12 MM X 1.75 MM art. 7547441
По запросу
14
PASSENGER SEATBELT BUCKLE, art. 2635235
По запросу
15
BOLT HEAD CAP art. 5450708
По запросу
16
SEAT HINGE BRACKET [ALL EXCEPT E87AG/BG] art. 5256836
По запросу
17
WIRE/TUMB CLAMP, .25 art. 7081246
По запросу
