модель 2004 года
- Модель Rhino 660
- Код модели RHINO 660 (YXR660FAS)

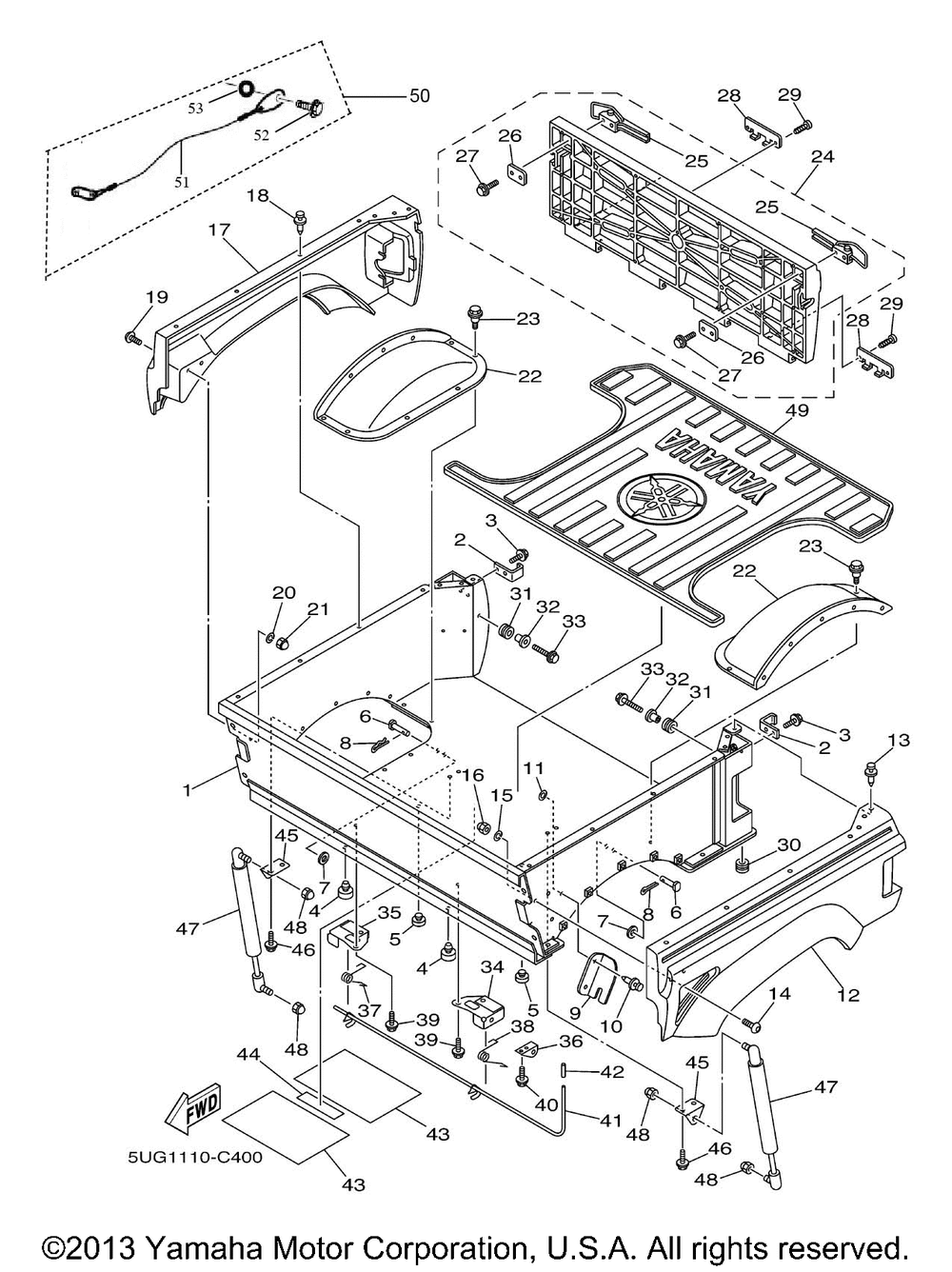

Схема багажника для RHINO 660 (YXR660FAS)
Схема
Детали
Номер
Наименование детали
Цена
1
CARRIER BOX ASSY KIT(replaces 5UG-F4850-01-00) This item has been discontinued and may not be available. Contact us for more information. art. 2P5-F4850-02-KT
По запросу
2
STOPPER, 1This item has been discontinued and may not be available. Contact us for more information. art. 5UG-K7521-01-00
По запросу
3
Болт с фланцем Yamaha art. 95817-06016-00
от 326 ₽
4
STOPPER,MAIN STAND(replaces 4X4-27114-00-00) art. 116-27114-00-00
По запросу
5
STOPPER,MAIN STAND art. 128-27114-00-00
По запросу
6
PIN,CLEVIS art. 90240-12093-00
По запросу
7
Шайба Yamaha art. 90201-127J6-00
от 987 ₽
8
PIN,COTTER art. 91401-30025-00
По запросу
9
GUARD, LEVERThis item has been discontinued and may not be available. Contact us for more information. art. 5UG-F6123-00-00
По запросу
10
Пистон пластиковый Yamaha art. 90269-06800-00
По запросу
11
WASHER,PLATEThis item has been discontinued and may not be available. Contact us for more information. art. 90201-068G6-00
По запросу
12
Панель кузова левая Yamaha art. 5UG-K8191-00-00
По запросу
13
Пистон пластиковый Yamaha art. 90269-06800-00
По запросу
14
SCREW,SPEC'L SHAPE art. 90149-06280-00
По запросу
15
Шайба Yamaha art. 92995-06100-00
от 473 ₽
16
NUT(4MY) art. 95307-06800-00
По запросу
17
Крыло заднее левое Yamaha art. 5UG-K8192-10-00
По запросу
18
Пистон пластиковый Yamaha art. 90269-06800-00
По запросу
19
SCREW,SPEC'L SHAPE art. 90149-06280-00
По запросу
20
Шайба Yamaha art. 92995-06100-00
от 473 ₽
21
NUT(4MY) art. 95307-06800-00
По запросу
22
GUARD, MUD(replaces 5UG-F152R-00-00) This item has been discontinued and may not be available. Contact us for more information. art. 5UG-F152R-01-00
По запросу
23
Болт art. 90109-063F5-00
По запросу
24
REAR STORAGE LID C(replaces 5UG-K810N-00-00) art. 5UG-K810N-21-00
По запросу
25
LATCH (FOR TAILGATE) art. 5UG-F389E-00-00
По запросу
26
PLATE, BACK UPThis item has been discontinued and may not be available. Contact us for more information. art. 5UG-K7527-00-00
По запросу
27
BOLT,FLANGE(replaces 95827-06025-00) art. 95822-06025-00
По запросу
28
COVER, HINGE art. 5UG-F4669-00-00
По запросу
29
Винт Yamaha art. 97707-50012-00
от 168 ₽
30
Втулка радиатора Yamaha art. 90480-12475-00
По запросу
31
Втулка резиновая Yamaha art. 90480-18290-00
По запросу
32
Втулка Yamaha art. 90387-066J1-00
По запросу
33
BOLT,FLANGE(replaces 95827-06025-00) art. 95822-06025-00
По запросу
34
PLATE 1This item has been discontinued and may not be available. Contact us for more information. art. 5UG-K7185-00-00
По запросу
35
PLATE 2This item has been discontinued and may not be available. Contact us for more information. art. 5UG-K7186-00-00
По запросу
36
HOLDER, LATCHThis item has been discontinued and may not be available. Contact us for more information. art. 5UG-K7175-00-00
По запросу
37
SPRING, TORSIONThis item has been discontinued and may not be available. Contact us for more information. art. 90508-18840-00
По запросу
38
SPRING, TORSIONThis item has been discontinued and may not be available. Contact us for more information. art. 90508-18841-00
По запросу
39
BOLT, FLANGEThis item has been discontinued and may not be available. Contact us for more information. art. 9582P-08020-00
По запросу
40
Болт с фланцем Yamaha art. 95817-06016-00
от 326 ₽
41
LATCH ASSYThis item has been discontinued and may not be available. Contact us for more information. art. 5UG-K7180-00-00
По запросу
42
CAP,PROTECTOR art. JJ3-K818M-00-00
По запросу
43
INSULATOR, SIDE COThis item has been discontinued and may not be available. Contact us for more information. art. 5UG-F174A-00-00
По запросу
44
INSULATOR, SIDE COVEThis item has been discontinued and may not be available. Contact us for more information. art. 5UG-F174T-00-00
По запросу
45
BRACKET, DAMPERThis item has been discontinued and may not be available. Contact us for more information. art. 5UG-F1798-10-00
По запросу
46
Болт с фланцем Yamaha art. 95817-06016-00
от 326 ₽
47
Амортизатор откидного борта Yamaha art. 5UG-F8415-00-00
По запросу
48
NUT,U(replaces 9560P-08200-00) art. 95602-08200-00
По запросу
49
MAT, REAR CARGO BED art. 5UG-F483J-00-00
По запросу
50
Тросик борта Yamaha art. 5UG-K7195-10-KT
По запросу
51
art. .5UG-K7195-10-00
По запросу
52
art. .90109-06053
По запросу
53
art. .92990-06200
По запросу
