модель 2007 года
- Модель Big Bear 250
- Код модели BIG BEAR 250 (YFM25BW)

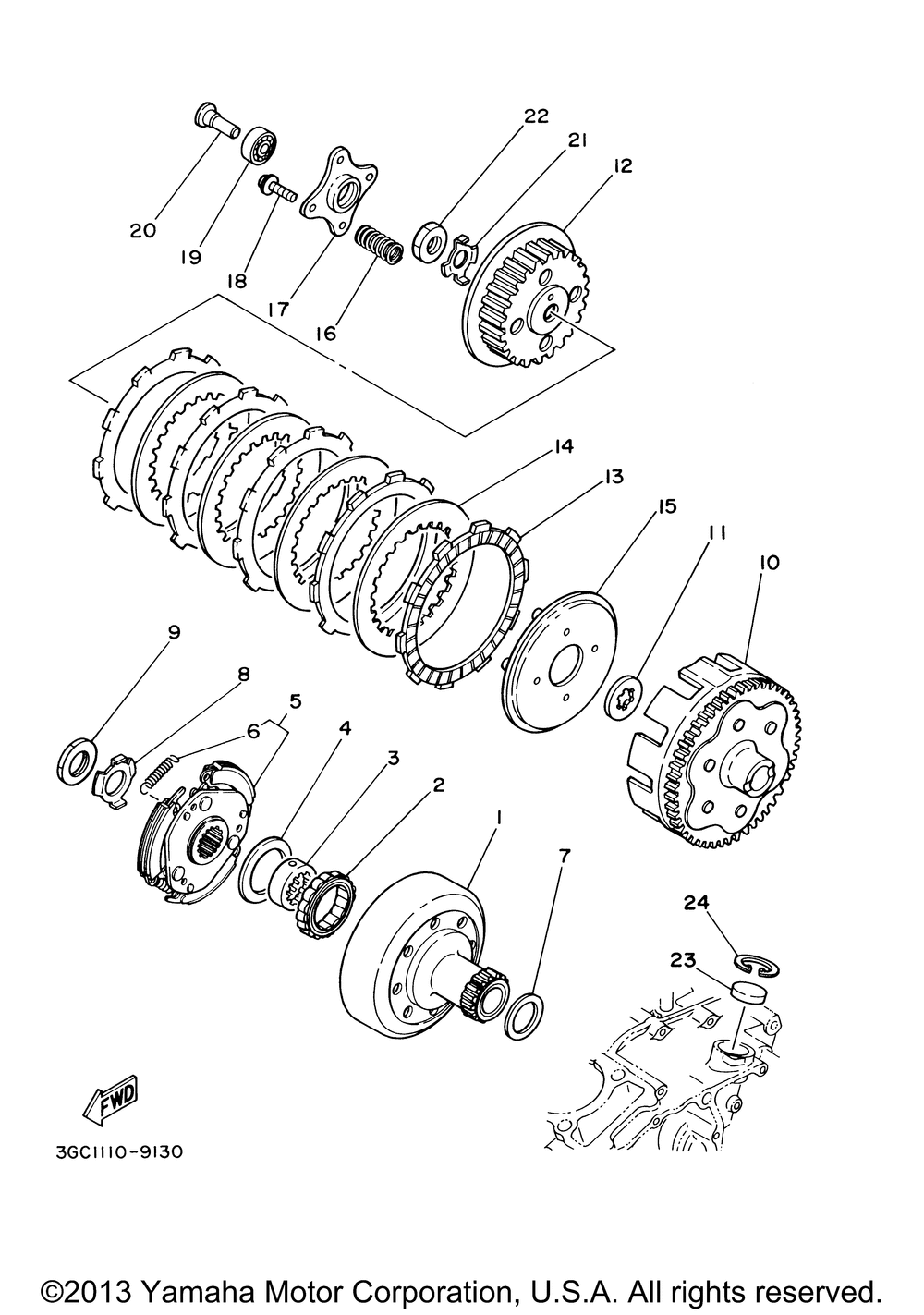

Схема сцепления для BIG BEAR 250 (YFM25BW)
Схема
Детали
Номер
Наименование детали
Цена
1
CLUTCH HOUSING COMThis item has been discontinued and may not be available. Contact us for more information. art. 5XG-E6611-00-00
По запросу
2
BEARING, ONE WAY art. 21V-16664-00-00
По запросу
3
RETAINER, BEARING art. 5XG-E6665-00-00
По запросу
4
WASHER,PLATE art. 90201-404M6-00
По запросу
5
CLUTCH CARRIER ASSThis item has been discontinued and may not be available. Contact us for more information. art. 5XG-E6620-00-00
По запросу
6
SPRING, CLUTCH WEIThis item has been discontinued and may not be available. Contact us for more information. art. 5XG-E6626-00-00
По запросу
7
WASHER,PLATE art. 90201-266F6-00
По запросу
8
WASHER,LOCK art. 90215-22259-00
По запросу
9
NUT art. 90170-22371-00
По запросу
10
PRIMARY DRIVEN GEAThis item has been discontinued and may not be available. Contact us for more information. art. 5XG-E6150-00-00
По запросу
11
PLATE, THRUST 1 art. 5XG-E6154-00-00
По запросу
12
BOSS, CLUTCH art. 5XG-E6371-00-00
По запросу
13
PLATE, FRICTIONThis item has been discontinued and may not be available. Contact us for more information. art. 5XG-E6321-00-00
По запросу
14
PLATE, CLUTCH 1This item has been discontinued and may not be available. Contact us for more information. art. 5XG-E6324-00-00
По запросу
15
PLATE, PRESSURE 1This item has been discontinued and may not be available. Contact us for more information. art. 5XG-E6351-00-00
По запросу
16
SPRING,COMPRESSION art. 90501-243J7-00
По запросу
17
PLATE, PRESSURE 2 art. 5XG-E6352-00-00
По запросу
18
SCREW,WITH WASHER art. 90159-05011-00
По запросу
19
Подшипник вала помпы Yamaha art. 93306-00004-00
от 4 490 ₽
20
PLATE, PUSH(replaces 21V-16358-00-00) art. 1YW-16358-00-00
По запросу
21
WASHER,LOCK art. 90215-14186-00
По запросу
22
NUTThis item has been discontinued and may not be available. Contact us for more information. art. 90170-14839-00
По запросу
23
PLUG,SPEC'L SHAPE art. 90338-26136-00
По запросу
24
CIRCLIP,R-TYPE art. 93420-28055-00
По запросу
