модель 2007 года
- Модель Big Bear 250
- Код модели BIG BEAR 250 (YFM25BW)

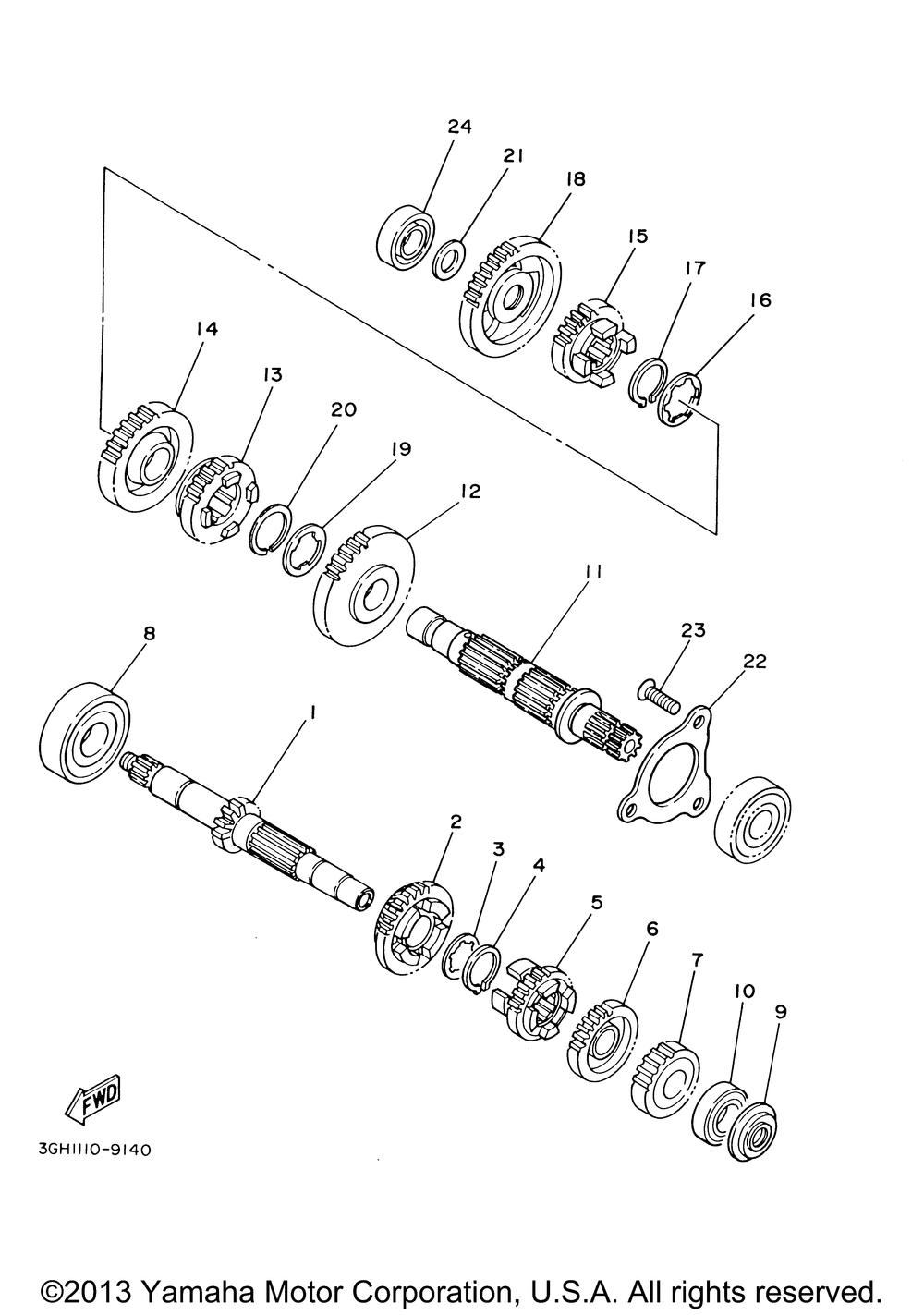

Схема трансмиссии для BIG BEAR 250 (YFM25BW)
Схема
Детали
Номер
Наименование детали
Цена
1
MAIN AXLE ASSYThis item has been discontinued and may not be available. Contact us for more information. art. 5XG-E7401-00-00
По запросу
2
GEAR,5TH PINION art. 24W-17151-02-00
По запросу
3
WASHER,SPEC'L SHAPE art. 90209-17285-00
По запросу
4
Стопрная шайба Yamaha art. 93410-20038-00
По запросу
5
GEAR, 3RD PINION art. 5XG-E7131-00-00
По запросу
6
GEAR, 4TH PINIONThis item has been discontinued and may not be available. Contact us for more information. art. 5XG-E7141-00-00
По запросу
7
GEAR, 2ND PINIONThis item has been discontinued and may not be available. Contact us for more information. art. 5XG-E7121-00-00
По запросу
8
BEARING(replaces 93306-204Y6-00) art. 93306-204YK-00
По запросу
9
OIL SEAL,S-TYPE art. 93101-15101-00
По запросу
10
BEARING art. 93306-202X2-00
По запросу
11
DRIVE AXLE ASSYThis item has been discontinued and may not be available. Contact us for more information. art. 5XG-E7402-00-00
По запросу
12
GEAR, 2ND WHEELThis item has been discontinued and may not be available. Contact us for more information. art. 5XG-E7221-00-00
По запросу
13
GEAR, 4TH WHEELThis item has been discontinued and may not be available. Contact us for more information. art. 1P0-E7241-00-00
По запросу
14
GEAR, 3RD WHEELThis item has been discontinued and may not be available. Contact us for more information. art. 5XG-E7231-00-00
По запросу
15
GEAR,5TH WHEEL art. 4BD-17251-00-00
По запросу
16
WASHER,SPEC'L SHAPE art. 90209-18208-00
По запросу
17
Стопорное кольцо Yamaha 93604-20156-00 art. 93410-22039-00
от 882 ₽
18
GEAR, 1ST WHEEL art. 5XG-E7211-00-00
По запросу
19
WASHER,SPEC'L SHAPE art. 90209-23241-00
По запросу
20
CIRCLIP,S-TYPE art. 93410-26067-00
По запросу
21
WASHER, PLATE(replaces 90201-15700-00) art. 90201-154E8-00
По запросу
22
PLATE, BEARING(replaces 5XG-E7558-00-00) This item has been discontinued and may not be available. Contact us for more information. art. 5XG-E7558-01-00
По запросу
23
Винт Yamaha art. 90149-08013-00
По запросу
24
BEARING art. 93306-202X2-00
По запросу
