модель 2007 года
- Модель Big Bear 250
- Код модели BIG BEAR 250 (YFM25BW)

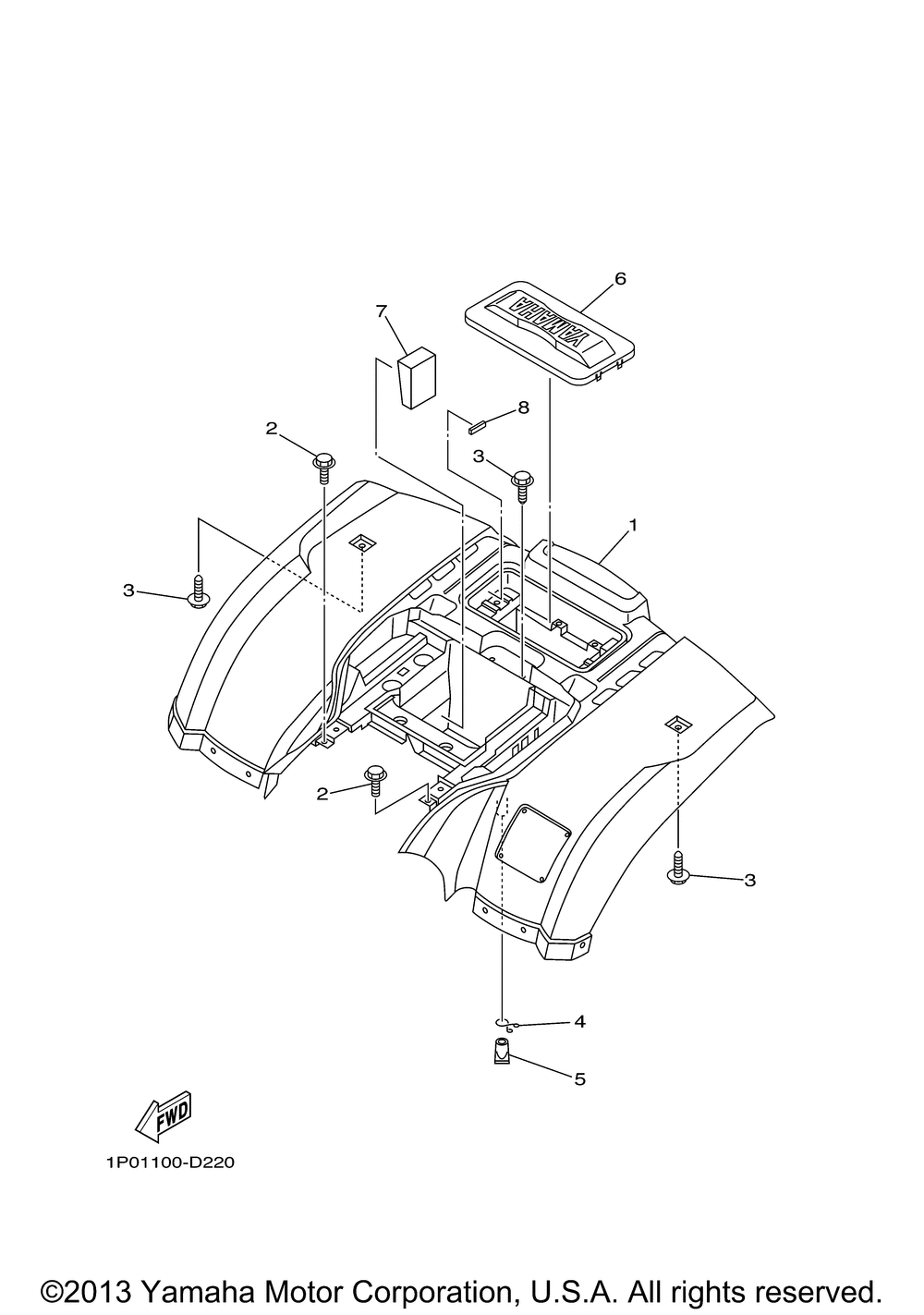

Схема заднего крыла для BIG BEAR 250 (YFM25BW)
Схема
Детали
Номер
Наименование детали
Цена
1
REAR FENDER ASSY.(replaces 1P0-F1600-00-00) This item has been discontinued and may not be available. Contact us for more information. art. 1P0-F1600-A1-00
По запросу
1
REAR FENDER ASSY.(replaces 1P0-F1600-10-00) This item has been discontinued and may not be available. Contact us for more information. art. 1P0-F1600-11-00
По запросу
1
REAR FENDER ASSY.(replaces 1P0-F1600-20-00) This item has been discontinued and may not be available. Contact us for more information. art. 1P0-F1600-21-00
По запросу
2
BOLT,WITH WASHER(replaces 90119-06227-00) art. 90119-06118-00
По запросу
3
BOLT, WITH WASHER(replaces 90119-06060-00) art. 90119-06226-00
По запросу
4
Хомут art. 90467-15M14-00
По запросу
5
Трубка сливная art. 5BF-1443E-00-00
По запросу
6
COVER, REAR FENDER art. 1P0-F1651-00-00
По запросу
6
COVER, REAR FENDER art. 1P0-F1651-10-00
По запросу
6
COVER, REAR FENDER art. 1P0-F1651-50-00
По запросу
7
DAMPERThis item has been discontinued and may not be available. Contact us for more information. art. 1P0-F1649-00-00
По запросу
8
CLAMP, DAMPERThis item has been discontinued and may not be available. Contact us for more information. art. 1P0-F4285-00-00
По запросу
