модель 2008 года
- Модель Rhino 450
- Код модели RHINO 450 HUNTER (YXR45FHX)

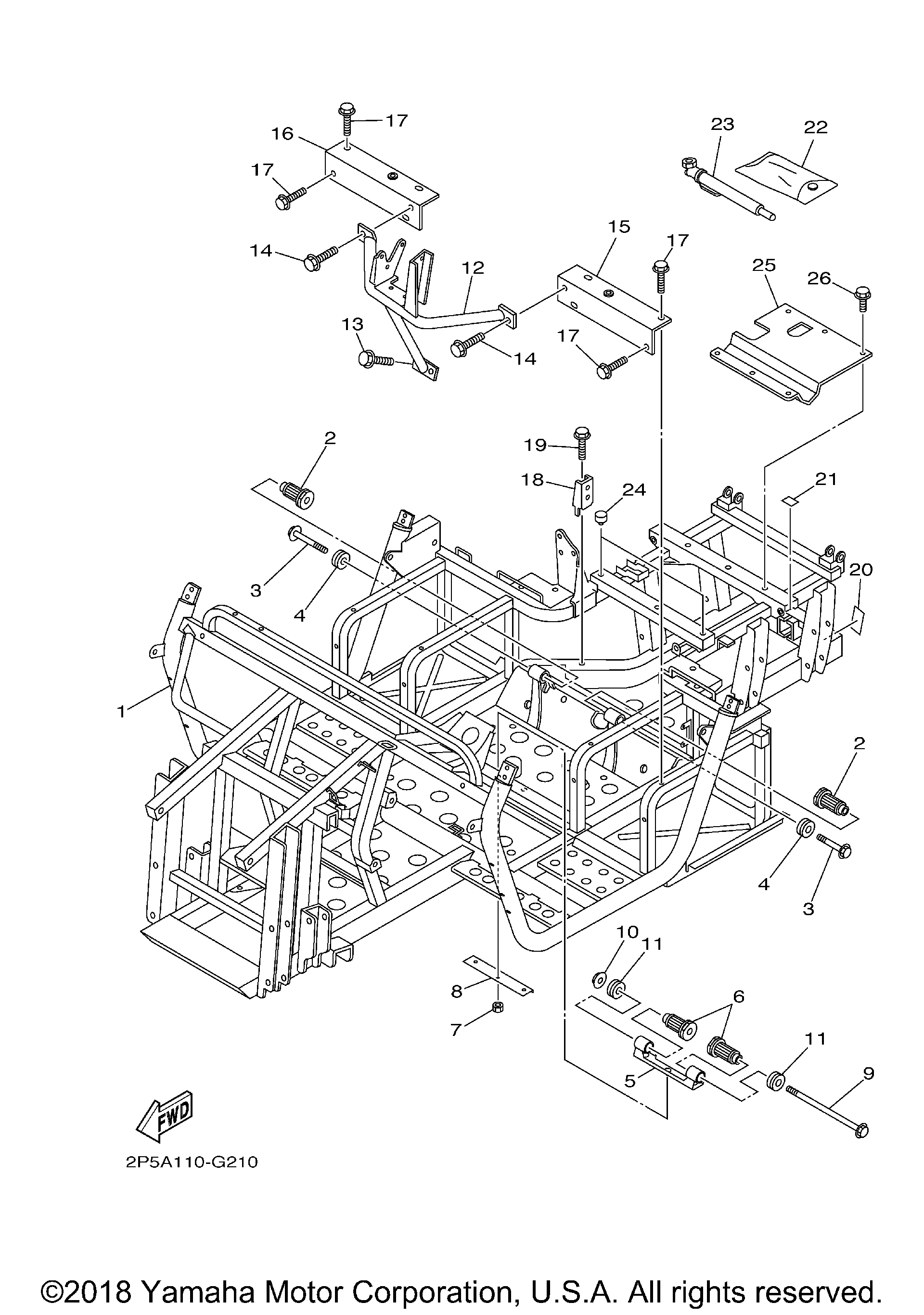

Схема рамы для RHINO 450 HUNTER (YXR45FHX)
Схема
Детали
Номер
Наименование детали
Цена
1
FRAME COMP.This item has been discontinued and may not be available. Contact us for more information. art. 2P5-F1110-20-00
По запросу
2
DAMPER, ENGINE MOUNT 3 art. 5UH-E5336-00-00
По запросу
3
Болт Yamaha art. 95812-10080-00
По запросу
4
DAMPER 2 art. 5ND-F1486-00-00
По запросу
5
STAY, ENGINE 2This item has been discontinued and may not be available. Contact us for more information. art. 2P5-F1315-00-00
По запросу
6
DAMPER, ENGINE MOUNT 3 art. 5UH-E5336-00-00
По запросу
7
.NUT, U FLANGE art. 95602-08200-00
По запросу
8
BRACKET, UNDERThis item has been discontinued and may not be available. Contact us for more information. art. 2P5-F2229-00-00
По запросу
9
BOLT, FLANGE art. 90105-10284-00
По запросу
10
Гайка Yamaha art. 95602-10200-00
По запросу
11
DAMPER 2 art. 5ND-F1486-00-00
По запросу
12
REINFORCEMENT, FRAME 1This item has been discontinued and may not be available. Contact us for more information. art. 5UG-F1986-00-00
По запросу
13
BOLT, FLANGE art. 90105-06831-00
По запросу
14
Болт Yamaha art. 95817-10020-00
По запросу
15
SUPPORT, SEATThis item has been discontinued and may not be available. Contact us for more information. art. 5UG-F114H-01-00
По запросу
16
SUPPORT, SEATThis item has been discontinued and may not be available. Contact us for more information. art. 5UG-F114J-01-00
По запросу
17
BOLT, FLANGE art. 90105-08867-00
По запросу
18
BRKT.This item has been discontinued and may not be available. Contact us for more information. art. 5UG-F116B-00-00
По запросу
19
BOLT, FLANGE art. 90105-06831-00
По запросу
20
LABEL 7 - ENGLISHThis item has been discontinued and may not be available. Contact us for more information. art. 5B4-F151K-00-00
По запросу
21
LABEL 6 art. 5UG-F151J-00-00
По запросу
22
TOOL KITThis item has been discontinued and may not be available. Contact us for more information. art. 5ND-F8100-00-00
По запросу
23
GAUGE, AIR art. 5UG-F811A-00-00
По запросу
24
STOPPER, MAIN STANDThis item has been discontinued and may not be available. Contact us for more information. art. 5UG-F7114-00-00
По запросу
25
INSULATOR, HEATThis item has been discontinued and may not be available. Contact us for more information. art. 5UG-F2898-00-00
По запросу
26
BOLT, FLANGE art. 90105-06831-00
По запросу
