модель 2008 года
- Модель Rhino 450
- Код модели RHINO 450 HUNTER (YXR45FHX)

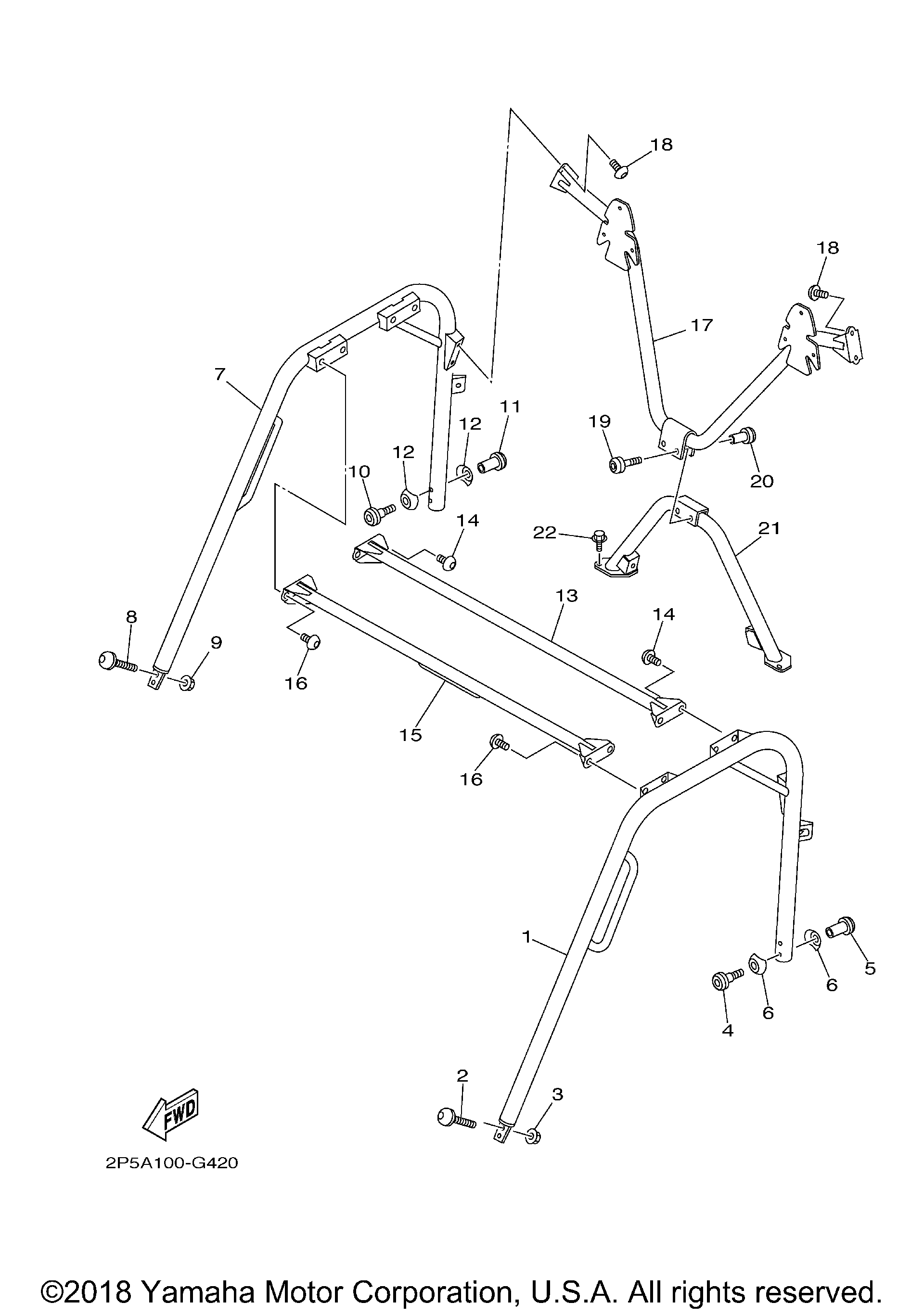

Схема защиты 2 для RHINO 450 HUNTER (YXR45FHX)
Схема
Детали
Номер
Наименование детали
Цена
1
SUPPORT, ROOF 3This item has been discontinued and may not be available. Contact us for more information. art. 5UG-K831A-51-00
По запросу
2
BOLT,HEX. SOCKET BUTTONThis item has been discontinued and may not be available. Contact us for more information. art. 90111-10803-00
По запросу
3
Гайка Yamaha art. 95602-10200-00
По запросу
4
BOLT art. 5UG-K7519-00-00
По запросу
5
NUT, SPECIAL art. 5UG-K7573-00-00
По запросу
6
WASHER 2 art. 5UG-K7526-00-00
По запросу
7
SUPPORT, ROOF 4This item has been discontinued and may not be available. Contact us for more information. art. 5UG-K831E-51-00
По запросу
8
BOLT,HEX. SOCKET BUTTONThis item has been discontinued and may not be available. Contact us for more information. art. 90111-10803-00
По запросу
9
Гайка Yamaha art. 95602-10200-00
По запросу
10
BOLT art. 5UG-K7519-00-00
По запросу
11
NUT, SPECIAL art. 5UG-K7573-00-00
По запросу
12
WASHER 2 art. 5UG-K7526-00-00
По запросу
13
MEMBER, ROOF FRAME(replaces 5UG-K8392-20-00) art. 1RB-K8392-00-00
По запросу
14
BOLT,HEX. SOCKET BUTTON art. 90111-10802-00
По запросу
15
MEMBER, CROSS ROOF(replaces 5UG-K8336-20-00) art. 1RB-K8336-00-00
По запросу
16
BOLT,HEX. SOCKET BUTTON art. 90111-10802-00
По запросу
17
ROOF SUPPORT ASSY 1(replaces 5UG-K830A-51-00) This item has been discontinued and may not be available. Contact us for more information. art. 1RB-K830A-00-00
По запросу
18
BOLT,HEX. SOCKET BUTTON art. 90111-10802-00
По запросу
19
BOLT art. 5UG-K7519-00-00
По запросу
20
NUT, SPECIAL art. 5UG-K7573-00-00
По запросу
21
ROOF SUPPORT ASSY 2This item has been discontinued and may not be available. Contact us for more information. art. 5UG-K830B-51-00
По запросу
22
Болт Yamaha art. 95812-10016-00
от 1 029 ₽
Другие схемы модели
Защита 2
