модель 2008 года
- Модель 366
- Код модели ATV 366 AUTOMATICTRANSMISSION 4X4 FIS RED [A2008IDG4BUSR]

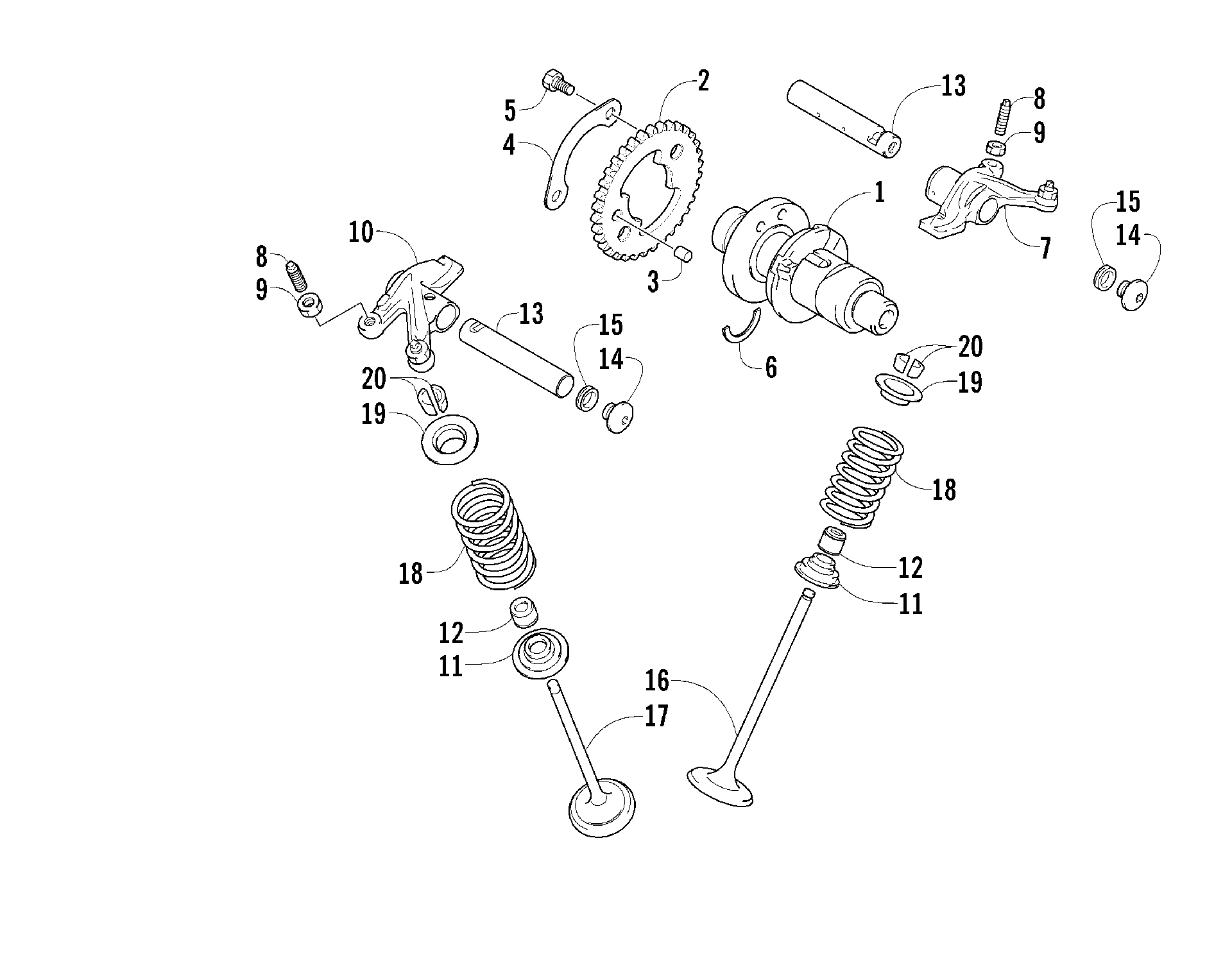

Схема cAMSHAFT / клапан узел [88838] для ATV 366 AUTOMATICTRANSMISSION 4X4 FIS RED [A2008IDG4BUSR]
Схема
Детали
![CAMSHAFT / клапан узел [88838]](/upload/schemas/633be6bbf28715.56748039.gif)
Номер
Наименование детали
Цена
1
CAMSHAFT-ASSEMBLY art. 0809-251
По запросу
2
Sprocket art. 0809-166
По запросу
3
DOWEL,ALIGNMENT,M5 X 8 art. 0829-036
По запросу
4
WASHER,FASTENER-LOCK art. 0828-086
По запросу
5
SCREW,M6X1 X 12 art. 0826-117
По запросу
6
C-RING,CAMSHAFT art. 0809-165
По запросу
7
ARM,VALVE ROCKER,INTAKE-MACHINING Included in Cylinder Head Assembly (p/n 0808-018) art. 0809-145
По запросу
8
SCREW TAPPET ADJUSTING Included in Cylinder Head Assembly (p/n 0808-018) art. 3304-007
По запросу
9
NUT TAPPET ADJUSTING Included in Cylinder Head Assembly (p/n 0808-018) art. 3304-026
По запросу
10
ARM,VALVE ROCKER,EXHAUST-MACHINING Included in Cylinder Head Assembly (p/n 0808-018) art. 0809-149
По запросу
11
SEAT,VALVE SPRING Included in Cylinder Head Assembly (p/n 0808-018) art. 0809-141
По запросу
12
Маслосъемный колпачок Arctic Cat art. 0809-190
от 1 334 ₽
13
SHAFT,ROCKER ARM Included in Cylinder Head Assembly (p/n 0808-018) art. 0809-151
По запросу
14
PLUG,ROCKER ARM Included in Cylinder Head Assembly (p/n 0808-018) art. 0831-053
По запросу
15
Шайба Arctic Cat art. 0830-143
По запросу
16
VALVE,INTAKE Included in Cylinder Head Assembly (p/n 0808-018) art. 0809-188
По запросу
17
VALVE,EXHAUST Included in Cylinder Head Assembly (p/n 0808-018) art. 0809-189
По запросу
18
SPRING,VALVE Included in Cylinder Head Assembly (p/n 0808-018) art. 0809-140
По запросу
19
RETAINER, SPRING Included in Cylinder Head Assembly (p/n 0808-018) art. 0809-142
По запросу
20
COTTER VALVE Included in Cylinder Head Assembly (p/n 0808-018) art. 3303-044
По запросу
