модель 2017 года
- Модель Prowler 500
- Код модели PROWLER 500 RED (U2017PAK4CUSR)

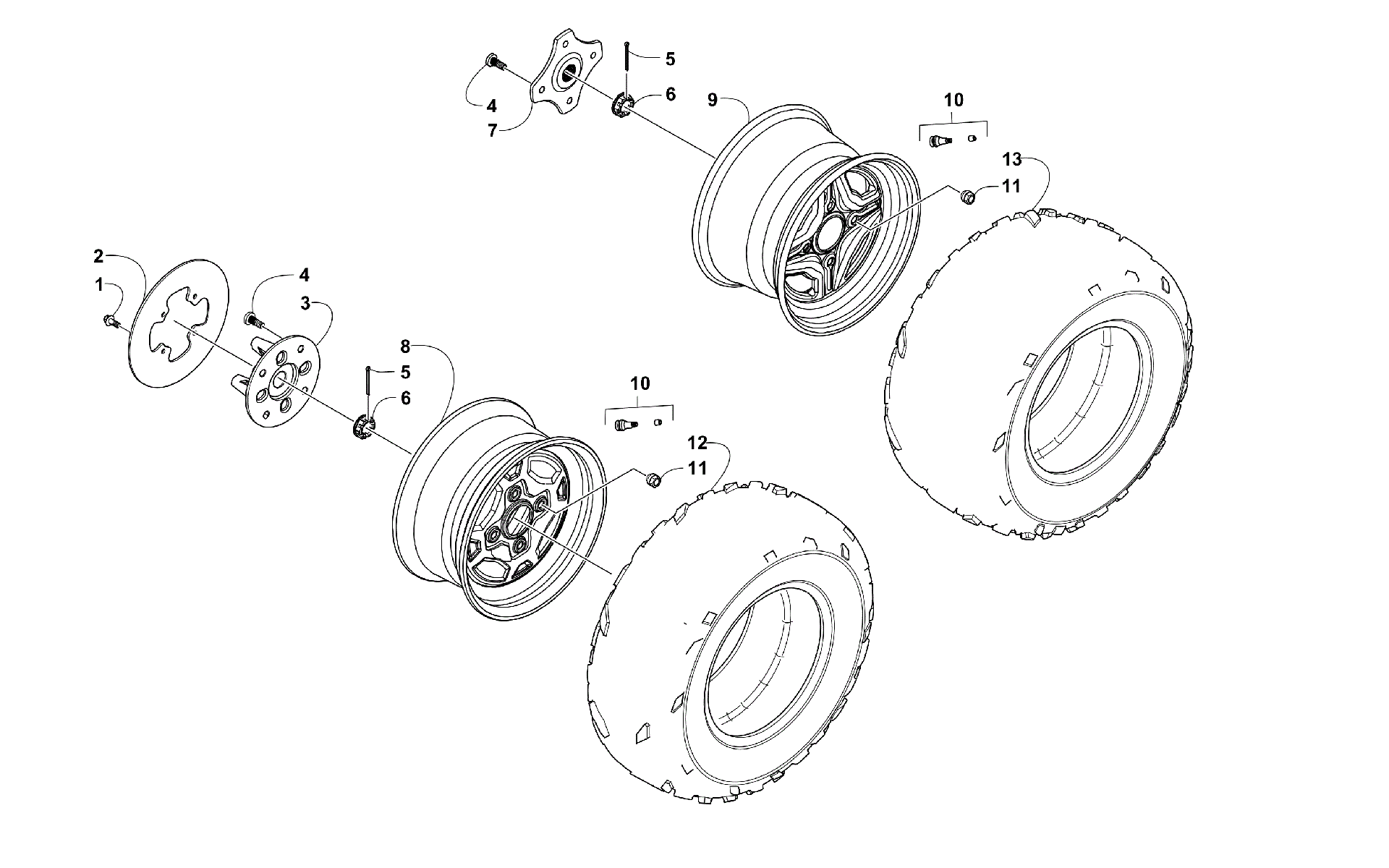

Схема колеса AND TIRE ASSEMBLY [302338] для PROWLER 500 RED (U2017PAK4CUSR)
Схема
Детали
![Колесо AND TIRE ASSEMBLY [302338]](/upload/schemas/63454acecb8566.89770991.gif)
Номер
Наименование детали
Цена
1
BOLT STEP HOLDER 8*24 art. 3304-015
По запросу
2
DISK FR BRAKE art. 3307-434
По запросу
3
HUB,ASSY-FRONT (PRLR 500) (inc. 4) Measure studs diagonally center to center to determine which hub is needed art. 3307-758
По запросу
3
Hub - Assembly (115 mm) (inc. 4) Measure studs diagonally center to center to determine which hub is needed art. 3307-698
По запросу
4
BOLT CONNECTOR art. 3304-014
По запросу
5
Шплинт Arctic Cat art. 0423-407
от 116 ₽
6
Гайка ступицы Arctic Cat art. 0423-607
от 1 029 ₽
7
Hub - Assembly (115 mm) (inc. 4) Measure studs diagonally center to center to determine which hub is needed art. 3307-699
По запросу
7
HUB,ASSY-REAR (PRLR 500) (inc. 4) Measure studs diagonally center to center to determine which hub is needed art. 3307-759
По запросу
8
WHEEL,STEEL-FENGCHI (12X6.0) Measure stud holes diagonally center to center to determine which wheel is needed art. 3307-784
По запросу
8
WHEEL,STEEL-PTD BLK (12X6.0) Measure stud holes diagonally center to center to determine which wheel is needed art. 2402-146
По запросу
9
Wheel, Rear (115 mm) Measure stud holes diagonally center to center to determine which wheel is needed art. 2402-372
По запросу
9
WHEEL,STEEL-FENGCHI (12X7.5) Measure stud holes diagonally center to center to determine which wheel is needed art. 3307-783
По запросу
10
VALVE RIM (TR412) art. 3304-562
По запросу
11
NUT WHEEL art. 3307-437
По запросу
12
TIRE,CARLISLE,TPRO-25X8R12(replaces 2402-111) art. 2402-645
По запросу
12
TIRE FR 25*8.00-12 2PR art. 3307-432
По запросу
13
TIRE RR 25*10.00-12 4PR art. 3307-441
По запросу
13
TIRE,CARLISLE,TPRO-25X10R12 art. 2402-112
По запросу
