модель 2008 года
- Модель 600 Sno Pro
- Код модели 600 SNO PRO BLACK (S2008ACDPRUSB)

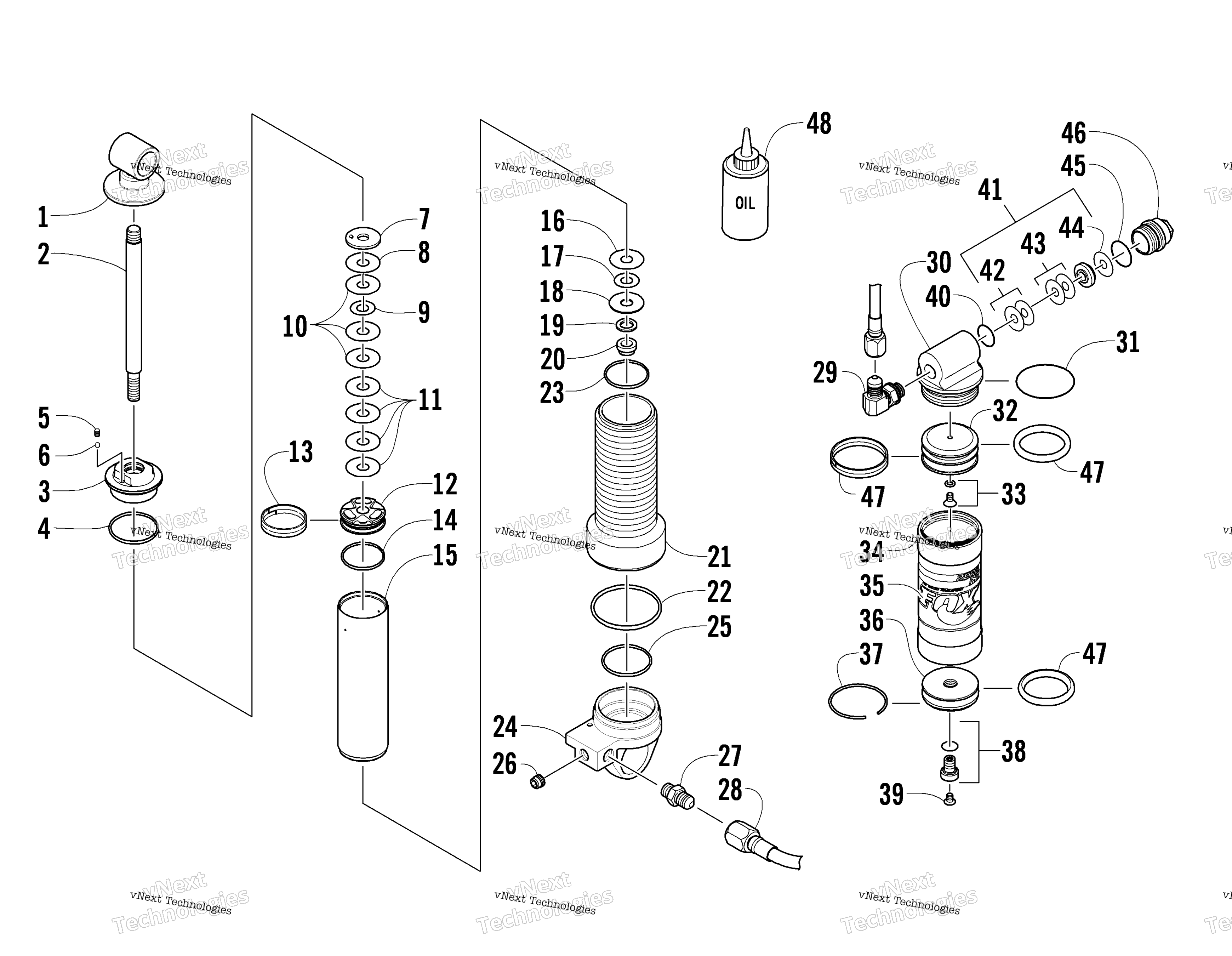

Схема задней части Suspension Front Arm Shock Absorber для 600 SNO PRO BLACK (S2008ACDPRUSB)
Схема
Детали
Номер
Наименование детали
Цена
0
Shock Absorber Rebuild Kit art. 3604-166
По запросу
0
Kit, Rebuild - Shock art. 3604-177
По запросу
0
Complete Shock Absorber Assembly art. 1704-732
По запросу
1
Eyelet, Shock art. 0604-625
По запросу
2
SHAFT,.498 X 6.690 X 1.20 art. 2604-529
По запросу
3
Bearing - Assembly (inc. 4) Included in Shock Absorber Rebuild Kit, (p/n 3604-166) but may be purchased separately. Note: Shaft seals and scrapers can only be purchased as a bearing assembly. art. 2604-568
По запросу
4
O-Ring Included in Shock Absorber Rebuild Kit, (p/n 3604-166) but may be purchased separately. Note: Shaft seals and scrapers can only be purchased as a bearing assembly. art. 1604-420
По запросу
5
Screw, Set Included in Shock Absorber Rebuild Kit, (p/n 3604-166) but may be purchased separately. Note: Shaft seals and scrapers can only be purchased as a bearing assembly. art. 1603-940
По запросу
6
Ball, Bleed Included in Shock Absorber Rebuild Kit, (p/n 3604-166) but may be purchased separately. Note: Shaft seals and scrapers can only be purchased as a bearing assembly. art. 1604-315
По запросу
7
Washer, Top Out - 1.125OD x 0.378ID x 0.093 art. 0603-540
По запросу
8
Valve, 1.300 x 0.008 in. art. 0603-349
По запросу
9
Valve, 0.800 x 0.006 in. art. 0603-333
По запросу
10
Valve, 1.300 x 0.015 in. art. 0603-890
По запросу
11
Valve, 1.300 x 0.012 in. art. 0603-891
По запросу
12
Piston, Damping - 1.459 Bore - No Bleed art. 2603-531
По запросу
13
Strap, Piston Included in Shock Absorber Rebuild Kit, (p/n 3604-166) but may be purchased separately. Note: Shaft seals and scrapers can only be purchased as a bearing assembly. art. 0603-292
По запросу
14
O-Ring Included in Shock Absorber Rebuild Kit, (p/n 3604-166) but may be purchased separately. Note: Shaft seals and scrapers can only be purchased as a bearing assembly. art. 2604-214
По запросу
15
Body, Shock art. 3604-422
По запросу
16
Valve, 1.100 x 0.008 in. art. 0603-343
По запросу
17
Valve, 0.700 x 0.012 in. art. 0603-878
По запросу
18
Washer, Top Out art. 3604-170
По запросу
19
Washer, Backup art. 0603-389
По запросу
20
Nut, Cap - Fox Shock art. 0603-301
По запросу
21
Sleeve, Adjuster (inc. 22-23) art. 3604-169
По запросу
22
O-Ring Included in Shock Absorber Rebuild Kit, (p/n 3604-166) but may be purchased separately. Note: Shaft seals and scrapers can only be purchased as a bearing assembly. art. 0604-809
По запросу
23
O-Ring Included in Shock Absorber Rebuild Kit, (p/n 3604-166) but may be purchased separately. Note: Shaft seals and scrapers can only be purchased as a bearing assembly. art. 0604-810
По запросу
24
End Cap, Shock (inc. 25) art. 2604-909
По запросу
25
O-Ring-End Cap art. 0603-438
По запросу
26
Plug, Brass art. 2604-207
По запросу
27
Fitting, Straight art. 2604-944
По запросу
28
Hose, Swivel art. 2604-967
По запросу
29
FITTING,ELBOW-90 DEG art. 2604-943
По запросу
30
Housing, Damping Adjuster (inc. 31) art. 2603-528
По запросу
31
O-Ring art. 2603-504
По запросу
32
Piston, Internal Floating - Assembly art. 2604-969
По запросу
33
Screw, Machine - w/O-Ring Included in Reservoir Rebuild Kit (p/n 3604-177), but may be purchased separately. art. 1604-316
По запросу
34
Reservoir art. 2603-515
По запросу
35
Decal, Shock - Reservoir art. 3604-160
По запросу
36
End Cap, Reservoir - Assembly - Bore art. 2603-525
По запросу
37
Ring, Retaining art. 0604-992
По запросу
38
Valve, Pressure - Assembly art. 0703-341
По запросу
39
Screw, Valve art. 0624-097
По запросу
40
O-Ring Included in Reservoir Rebuild Kit (p/n 3604-177), but may be purchased separately. art. 3604-164
По запросу
41
Piston, Concentric - Damping Adjuster (inc. 42-44) art. 3604-187
По запросу
42
Plate, Backup art. 3604-165
По запросу
43
Valve, 0.700 x 0.010 in. art. 2603-501
По запросу
44
Valve, 0.700 x 0.008 in. art. 0603-331
По запросу
45
O-Ring Included in Reservoir Rebuild Kit (p/n 3604-177), but may be purchased separately. art. 2603-502
По запросу
46
Cartridge, Damping Adjuster art. 2603-527
По запросу
47
Kit, Rebuild - Shock art. 3604-177
По запросу
48
SEMI-SYN SHOCK OIL-1 QUART art. 5639-530
По запросу
