модель 2008 года
- Модель 600 Sno Pro
- Код модели 600 SNO PRO BLACK (S2008ACDPRUSB)

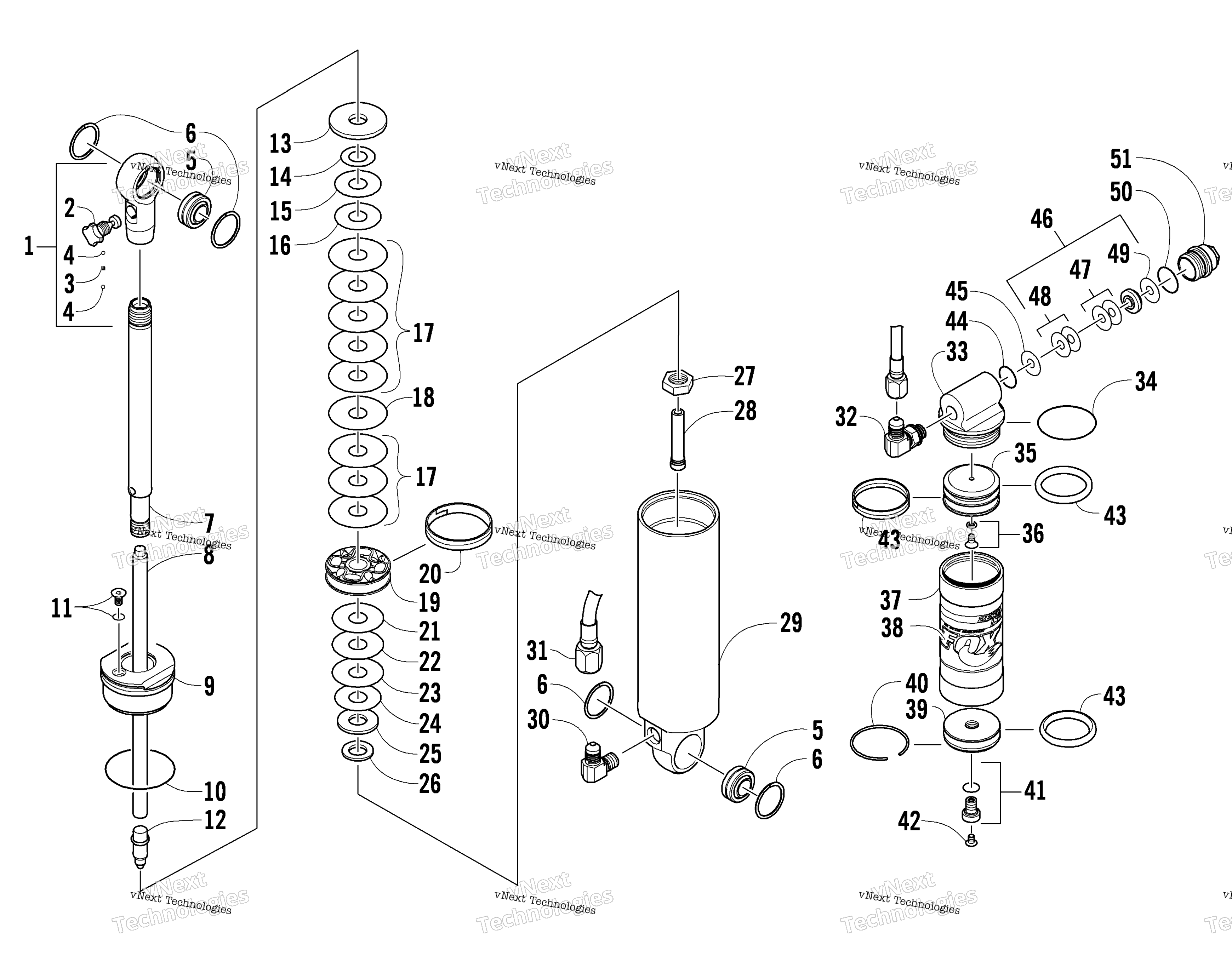

Схема задней части Suspension Rear Arm Shock Absorber для 600 SNO PRO BLACK (S2008ACDPRUSB)
Схема
Детали
Номер
Наименование детали
Цена
0
SHOCK,REAR ARM art. 1704-733
По запросу
0
Kit, Rebuild - Shock art. 3604-162
По запросу
0
Kit, Rebuild - Shock art. 3604-177
По запросу
1
Eyelet, Shock - Assembly (inc. 2-4) art. 2604-961
По запросу
2
Knob, Damping Adjuster art. 2604-958
По запросу
3
Spring art. 2604-960
По запросу
4
Ball, Bleed art. 1604-315
По запросу
5
Подшипник шарнирный Arctic Cat art. 1604-664
от 6 279 ₽
6
Кольцо пружинное Arctic Cat art. 3604-147
от 2 405 ₽
7
Shaft, Shock art. 2604-955
По запросу
8
Rod, Damping Adjuster - Assembly art. 2604-954
По запросу
9
Bearing - Assembly (inc. 10) Included in Shock Absorber Rebuild Kit, (p/n 3604-162) but may be purchased separately. Note: Shaft seals and scrapers can only be purchased as a bearing assembly. art. 2604-956
По запросу
10
O-Ring Included in Shock Absorber Rebuild Kit, (p/n 3604-162) but may be purchased separately. Note: Shaft seals and scrapers can only be purchased as a bearing assembly. art. 0603-671
По запросу
11
Screw, Machine Included in Shock Absorber Rebuild Kit, (p/n 3604-162) but may be purchased separately. Note: Shaft seals and scrapers can only be purchased as a bearing assembly. art. 2604-530
По запросу
12
Needle, Damping - w/O-Ring art. 2604-953
По запросу
13
Washer, Top Out art. 2604-449
По запросу
14
Valve, 0.950 x 0.006 in. art. 2604-478
По запросу
15
Valve, 1.100 x 0.006 in. art. 2604-484
По запросу
16
Valve, 1.250 x 0.006 in. art. 2604-684
По запросу
17
Valve, 1.600 x 0.012 in. art. 2604-503
По запросу
18
Valve, Shock 1.350 x 0.006 in. art. 2604-490
По запросу
19
Piston, Damping art. 2604-673
По запросу
20
Strap, Piston - Teflon Included in Shock Absorber Rebuild Kit, (p/n 3604-162) but may be purchased separately. Note: Shaft seals and scrapers can only be purchased as a bearing assembly. art. 2604-628
По запросу
21
Valve, 1.425 x 0.015 in. art. 2604-499
По запросу
22
Valve, 1.425 x 0.012 in. art. 2604-498
По запросу
23
Valve, 1.425 x 0.010 in. art. 2604-497
По запросу
24
Valve, 1.100 x 0.004 in. art. 3604-149
По запросу
25
Plate, Top Out art. 3604-159
По запросу
26
Washer, Backup art. 3604-184
По запросу
27
Nut art. 2604-448
По запросу
28
Valve, Check - Assembly art. 3604-423
По запросу
29
Body, Shock art. 2604-957
По запросу
30
Fitting, Elbow art. 2604-950
По запросу
31
Hose, Swivel art. 2604-967
По запросу
32
FITTING,ELBOW-90 DEG art. 2604-943
По запросу
33
Housing, Damping Adjuster art. 2603-528
По запросу
34
O-Ring art. 2603-504
По запросу
35
Piston, Internal Floating - Assembly art. 2604-969
По запросу
36
Screw, Machine - w/O-Ring Included in Reservoir Rebuild Kit (p/n 3604-177), but may be purchased separately. art. 1604-316
По запросу
37
Reservoir art. 2603-515
По запросу
38
Decal, Shock - Reservoir art. 3604-160
По запросу
39
End Cap, Reservoir - Assembly - Bore art. 2603-525
По запросу
40
Ring, Retaining art. 0604-992
По запросу
41
Valve, Pressure - Assembly art. 0703-341
По запросу
42
Screw, Valve art. 0624-097
По запросу
43
Kit, Rebuild - Shock art. 3604-177
По запросу
44
O-Ring Included in Reservoir Rebuild Kit (p/n 3604-177), but may be purchased separately. art. 3604-164
По запросу
45
Valve, .700 DIA X .010 art. 2603-045
По запросу
46
Piston, Concentric - Damping Adjuster (inc. 47-49) art. 3604-187
По запросу
47
Valve, 0.700 x 0.010 in. art. 2603-501
По запросу
48
Plate, Backup art. 3604-165
По запросу
49
Valve, 0.700 x 0.008 in. art. 0603-331
По запросу
50
O-Ring Included in Reservoir Rebuild Kit (p/n 3604-177), but may be purchased separately. art. 2603-502
По запросу
51
Cartridge, Damping Adjuster art. 2603-527
По запросу
4639
SEMI-SYN SHOCK OIL-1 QUART Not Illustrated art. 5639-530
По запросу
